Dual Holes Semi-Automatic Crude Oil Density Meter PT100 Sensor RT ～80℃ ASTM D1298
商品の詳細
| 測定穴の数 | 2穴 | バスタブ容量 | Ф250*300mm |
|---|---|---|---|
| 試験管容量 | 500ml | 温度制御範囲 | 室温 ～80℃ または 5℃ ～ 80℃（オプション冷却） |
| 温度制御精度 | ±0.1℃ | 電源 | AC220V±10% 50Hz |
| ハイライト | semi-automatic crude oil density meter,crude oil density meter with PT100 sensor,crude oil density meter ASTM D1298 |
||
製品の説明

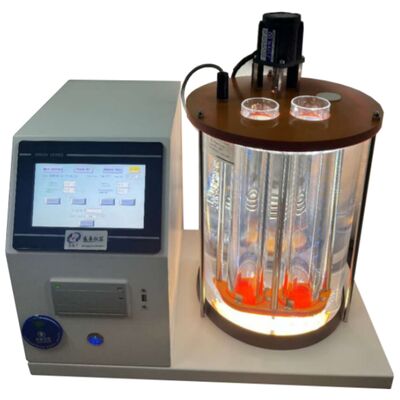

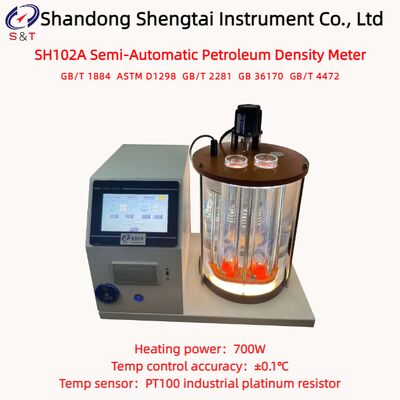

SH102A Semi-Automatic Petroleum Density Meter
Standard: GB/T 1884 ASTM D1298 GB/T 2281 GB 36170 GB/T 4472
The SH102A Petroleum Product Density Meter is designed and manufactured in accordance with the requirements specified in the Chinese National Standard GB/T 1884 "Determination of Density of Petroleum and Liquid Petroleum Products (Hydrometer Method)". As the latest liquid petroleum product density tester developed by our company, it is suitable for measuring the density of crude oil and liquid petroleum products.
The design and manufacturing comply with the requirements specified in GB/T 1884 "Methods for Determination of Density of Crude Oil and Liquid Petroleum Products (Hydrometer Method)", ASTM D1298, GB/T 2281-2008 "Methods for Determination of Density of Coking Oil Products", and meet the standards of GB 36170-2018 "Crude Oil", SH 0068 "Methods for Determination of Density or Specific Gravity of Engine Coolants and Their Concentrates (Hydrometer Method)", and GB/T 4472 "Determination of Density and Specific Gravity of Chemical Products"
Main Features
● This instrument features touch-screen temperature control.
● The use of a hard glass tank and an electric stirring device ensures clear observation of samples and uniform temperature distribution within the bath.
Technical parameters
| Number of measurement holes | 2 holes |
| Bathtub capacity | Ф250 * 300mm |
| Test tube capacity | 500ml |
| Heating power | 700W |
| Temp control range | RT ～80℃ or 5℃ ～ 80℃(optional cooling) |
| Temp control accuracy | ±0.1℃ |
| Temp sensor | PT100 industrial platinum resistor |
| 10 sets of density tubes | Specifications: 600 ～ 1010 kg/m³ |
| Graduation value: 0.5 | |
| Total length: 300 mm | |
| Power supply | AC220V±10% 50Hz |
| Dimensions | 320*380*530mm |
| Weight | 12kg |
Note: The appearance images, dimensions, volume, and weight of the instrument are for reference only. Minor changes may occur if the instrument is updated, and no further notice will be provided.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to your company:
The provided instruments and materials are new, comply with national quality standards, and come with manufacturer certificates of conformity;
The provided materials and main components comply with the technical requirements specified in the technical documentation;
The warranty period for the entire equipment is one year (excluding normal wear and tear of consumable parts).
For instrument quality issues arising within the warranty period, we will provide free repairs. For equipment failures caused by the user's responsibility, we will handle the repairs with reasonable charges.
Lifelong discounted supply of spare parts and comprehensive maintenance services for the entire machine.
After the warranty period expires, our company will only charge for the cost of repairs and technical services when the user requests them
