Fully Automatic Vacuum Distillation Tester ASTM D1160 ±0.1℃ Accuracy
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 温度範囲 | -40 °C 室温または室温 500 °C | 精度 | ±0.1°C |
|---|---|---|---|
| 蒸留率 | 4～5mL/分 | 容積の検出の範囲 | 0 〜 200mL |
| 冷却方法 | コンプレッサー冷却 | 表示モード | 埋め込まれた産業等級色のタッチ画面 |
| ハイライト | fully automatic vacuum distillation tester,ASTM D1160 distillation tester,crude oil testing equipment with warranty |
||
製品の説明
Fully Automatic Vacuum Distillation Tester ± 0.1℃ Distillation 4 ～ 5mL/Min ASTM D1160
Product Specifications
| Attribute | Value |
|---|---|
| Temp range | -40 ℃ ～ room temp or room temp ～ 500 ℃ |
| Accuracy | ± 0.1℃ |
| Distillation rate | 4 ～ 5mL/min |
| Volume detection range | 0 ～ 200mL |
| Cooling method | Compressor cooling |
| Display mode | Embedded industrial grade color touch screen |
Product Description

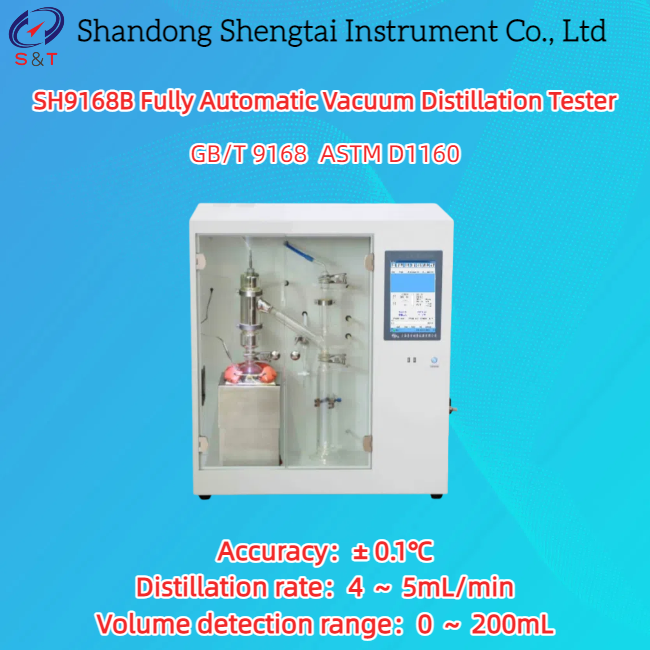

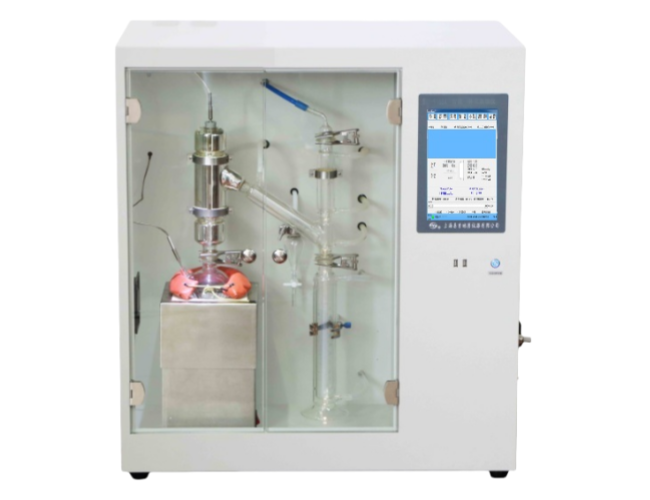

SH9168B Fully Automatic Vacuum Distillation Tester
The SH9168B automatic vacuum distillation analyzer is a specialized testing instrument designed and manufactured in accordance with the Chinese standards GB/T 9168 and ASTM D1160.
This instrument measures the boiling point range of petroleum products that can be partially or completely evaporated. It is a fully automatic vacuum distillation analyzer with heating and cooling devices, equipped with an imported liquid level sensor to automatically track the liquid level.
Performance Characteristics
- Fully automated temperature control, liquid level tracking, temperature recording, and printing functions
- Built-in micro thermal printer for automatic result reporting
- Standard-compliant testing process with reliable data and excellent repeatability
- Imported infrared liquid level detection unaffected by ambient light
- Accurate volume measurement
Technical Parameters
- Display mode: Embedded industrial grade color touch screen
- Refrigeration method: German imported compressor refrigeration
- Temp range: -40 ℃ ～ room temp or room temp ～ 500 ℃ accuracy ± 0.1℃
- Heating method: Electric heating unit, maximum heating power of 800 W
- Temperature sensor: Pt100 glass probe imported from Germany
- Cooling method: Compressor cooling
- Distillation rate: 4 ～ 5mL/min
- Volume detection range: 0 ～ 200mL
- Working power supply: AC220V 50Hz
- Packaging size: 780 * 550 * 650mm
- Weight: 65kg
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Instrument Quality Assurance
- Brand new instruments meeting quality standards with manufacturer's certificate
- Materials and components meet specified technical requirements
- One-year overall quality assurance (excluding normal wear and tear)
- Free maintenance for quality issues during warranty period
- Lifetime discounted parts supply and maintenance services
- Post-warranty maintenance available at cost
Packaging and Delivery
- Standard wooden or cardboard box packaging
- Internal packaging: Elastic pearl cotton with hardwood board and strong bandage corner protection
Packing List
| Number | Name | Quantity | Unit |
|---|---|---|---|
| 1 | Host | 1 | Unit |
| 2 | Sensor | 3 | Piece |
| 3 | Vacuum pump 4L/S | 1 | Unit |
| 4 | Vacuum tube | 1.5 | Metre |
| 5 | Vacuum gauge | 1 | Set |
| 6 | Vacuum distillation flask | 1 | Piece |
| 7 | Vacuum jacketed distillation column assembly | 1 | Set |
| 8 | Receiver | 1 | Piece |
| 9 | Temperature gauge -2～400 ℃ | 1 | Piece |
| 10 | Silicone tube with a diameter of 6 * 9 | 2 | Metre |
| 11 | Cylinder connection | 1 | Piece |
| 12 | Certificate of conformity | 1 | Copy |
| 13 | Instructions | 1 | Copy |
