SH8017 Petroleum Vapor Pressure Tester 0-200KPa ASTM D-323
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 水浴の加熱力 | 1600W | 水浴の温度範囲 | 室温 100 °C |
|---|---|---|---|
| 圧力測定の範囲 | 0〜200kPa | 圧力計精度 | ± 0.4% |
| 環境温度 | -10℃ ～ 35℃ | 相対湿度 | ≤ 85% |
| ハイライト | Petroleum vapor pressure tester ASTM D-323,Crude oil testing equipment 0-200KPa,Vapor pressure tester with warranty |
||
製品の説明
Petroleum Product Vapor Pressure Tester manometry 0-200KPa Reid Method ASTM D-323
Product Specifications
| Attribute | Value |
|---|---|
| Heating power of water bath | 1600W |
| Temp range for water bath use | room temperature ～ 100 ℃ |
| Pressure measurement range | 0-200KPa |
| Pressure gauge accuracy | ± 0.4% |
| Environmental temperature | -10 ℃ ～ 35 ℃ |
| Relative humidity | ≤ 85% |
Product Description

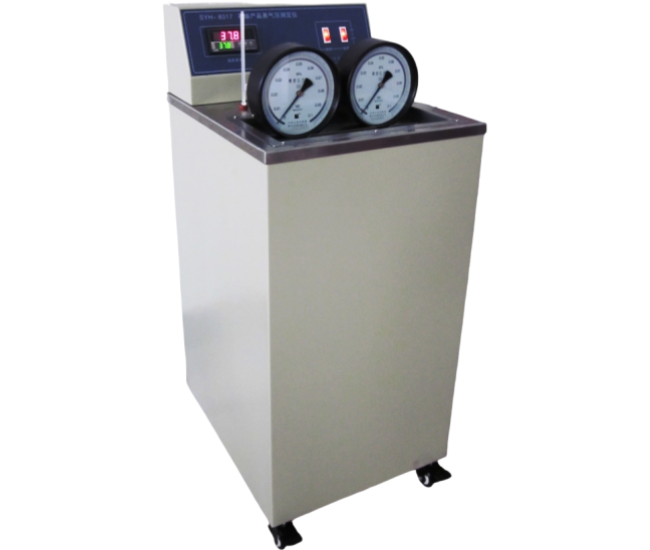

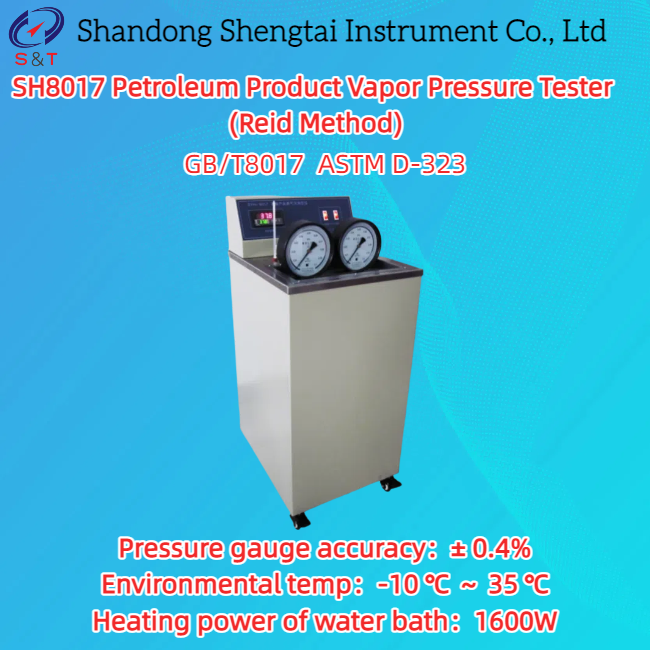

SH8017 Petroleum Product Vapor Pressure Tester (Reid Method)
The SH8017 petroleum product vapor pressure tester is designed and manufactured in accordance with the requirements of the Chinese standard GB/T8017 "Determination of Vapor Pressure of Petroleum Products (Reid Method)" and ASTM D-323, and is suitable for measuring the vapor pressure of gasoline, volatile crude oil, and other volatile petroleum products.
The SH8017 petroleum product vapor pressure tester is designed and manufactured in accordance with the requirements of the Chinese standard GB/T8017 "Determination of Vapor Pressure of Petroleum Products (Reid Method)" and ASTM D-323, and is suitable for measuring the vapor pressure of gasoline, volatile crude oil, and other volatile petroleum products.
Technical Specifications
| Standard | GB/T8017 ASTM D-323 |
| Working power supply | AC220V ± 10% 50Hz |
| Heating power of water bath | 1600W |
| Temp range for water bath use | room temperature ～ 100 ℃ |
| Temp control accuracy of water bath | ± 0.1 ℃ |
| Pressure measurement range | 0-200KPa |
| Pressure gauge accuracy | ± 0.4% |
| Environmental temperature | -10 ℃ ～ 35 ℃ |
| Relative humidity | ≤ 85% |
| Power consumption of the whole machine | not exceeding 1700W |
| Instrument size | 485 * 405 * 980mm |
| Packaging size | 1070 * 490 * 640mm |
| Packaging weight | 58kg (wooden crate) |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Instrument Quality Assurance
- The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity
- The materials and main components provided meet the technical requirements specified in the technical documentation
- The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts)
- We are responsible for free maintenance of any instrument quality issues that occur during the warranty period
- Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine
- After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee
Packaging and Delivery
Packaging of goods: standard wooden or cardboard boxes.
Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
Standard Package Contents
| Number | Name | Quantity | Unit | Note |
|---|---|---|---|---|
| 1 | Vapor pressure tester | 1 | Unit | |
| 2 | Vapor pressure oxygen bomb | 2 | Set | |
| 3 | Pressure gauge | 2 | Piece | |
| 4 | Mercury thermometer | 1 | Piece | |
| 5 | Instructions | 1 | Copy | |
| 6 | Packing list | 1 | Copy | |
| 7 | Certificate of Conformity Warranty Card | 1 | Copy |
