Dust Angle Of Repose Tester Funnel Taper 60° ± 0.5° 304 Stainless Steel ASTM D6393
商品の詳細
| トンネル出口直径 | 5mm | トンネルコンパー | 60°±0.5° |
|---|---|---|---|
| 分度器 | 10cm | コレット底部からプレート表面までの距離 | 80mm±2mm |
| Dimesions | Φ80×250mm | 重さ | 2.6KG |
| ハイライト | Dust angle of repose tester 304 stainless steel,Angle of repose tester ASTM D6393,Stainless steel dust funnel taper 60° |
||
製品の説明

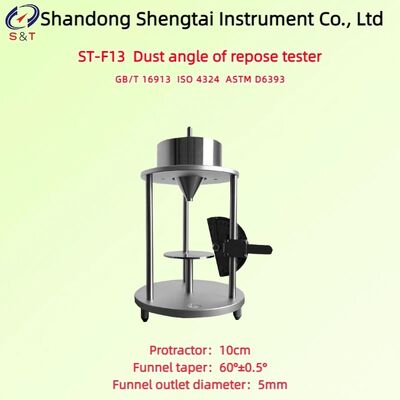

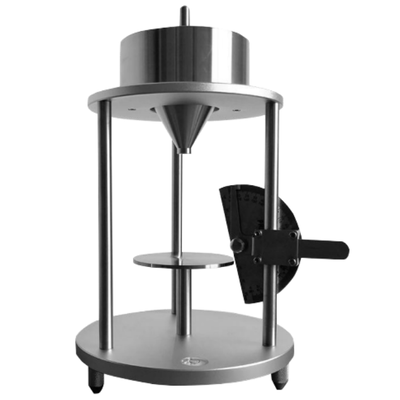

ST-F13 Dust angle of repose tester Standard: GB/T 16913 ISO 4324 ASTM D6393 Resting angle (also known as rest angle): refers to the acute angle between the inclined surface of dust accumulation and the bottom horizontal plane. The ST-F13 powder (dust) angle of repose tester is designed and produced in accordance with the national standard GB/T 16913-2008 Test Methods for Dust Physical Properties Part 5: Determination of Angle of repose by Injecting Limited Bottom Method (this
