Platinum Saybolt Colorimeter Wavelength Range 400~700nm Test 0~200% ASTM D156
商品の詳細
| 積分球 | Φ 40のmmの鳥類の3D拡散表面のコーティング | 光源 | CLEDs (フルバンドバランスLED光源) |
|---|---|---|---|
| センサー | デュアル光路センサーアレイセンサー | 波長範囲 | 400~700nm |
| 波長間隔 | 10nm | 動作温度 | 0~45°C,相対湿度80%以下 (35°C),水凝縮がない |
| ハイライト | Platinum Saybolt Colorimeter 400~700nm wavelength,Colorimeter ASTM D156 testing instrument,Saybolt Colorimeter 0~200% test range |
||
製品の説明

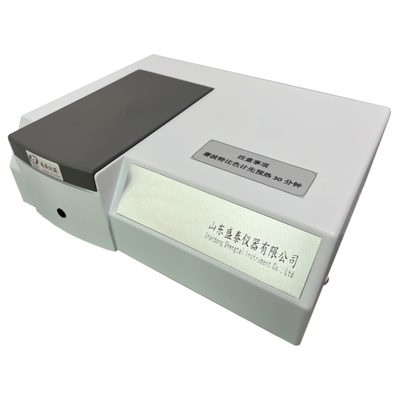

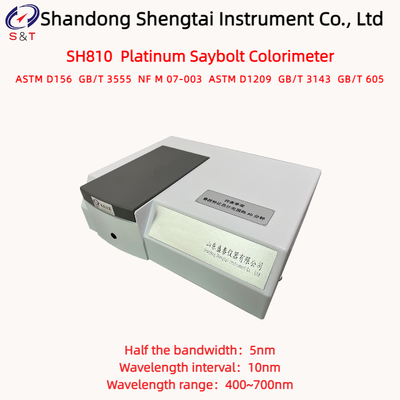

SH810 Platinum Saybolt Colorimeter
Standard: ASTM D156 GB/T 3555 NF M 07-003 ASTM D1209 GB/T 3143 GB/T 605
SH810 Fully Automatic Petroleum Product Colorimeter is a specialized instrument designed for liquid color measurement. Featuring unique microcomputer-controlled technology, it boasts an elegant and portable design, offering both laboratory and field usability. Equipped with factory calibration and user-defined calibration functions, its sample cell design ensures ease of measurement and maintenance. The Platinum-Cobalt Colorimeter employs a D/0 measurement structure, integrating full-bandwidth light sources, single-grating optical path spectrometry, and ETC real-time calibration technologies, achieving a resolution of 0.0001, a transmittance standard deviation of less than 0.08%, and a color difference value of ΔE*ab 0.015.
The platinum-cobalt color is expressed in Hazen units, where one unit corresponds to the color of a solution containing 1 milligram of platinum (as chloroplatinate) and 2 milligrams of cobalt chloride hexahydrate per liter. The typical range is between 1 and 500 Hazen units. This method is suitable for determining the color of transparent or slightly opaque liquid chemical products with platinum-cobalt color numbers close to the reference, which usually exhibit a brown-yellow hue.
Gardner Color Scale: A standard colorimetric scale prepared by mixing cobalt chloride solution, ferric chloride solution, and potassium chloroplatinate solution in varying proportions, typically ranging from 1 to 18. It is suitable for colors that are darker yellow or more brownish than the platinum-cobalt color scale.
Saybolt (ASTM D156, GB/T 3555, NF M 07-003)
The color of jet fuel is determined according to the method specified in GB/T 3555-1992 "Determination of Color by the Saybolt Color Scale (Saybolt Colorimeter Method) for Petroleum Products," with color numbers ranging from +30 (light color) to -16 (dark color).
The color number of the fully automatic petroleum product colorimeter fully complies with the ISO standard color numbers specified in GB/T6540. After calibration with ISO standard color numbers, the instrument automatically determines the sample's color number and outputs the results.
Instrument features:
● Utilize UV-enhanced silicon photodiodes
● The transmittance measurement range is expanded from 0~100% to 0~200%
● Platinum-Cobalt Color (Compliant with ASTM D1209, GB/T 3143)
● "General Method for Colorimetric Determination of Chemical Reagents" GB/T 605-2006
Technical parameter
| Measurement conditions | D /0(scattering light source, 0 degree observation Angle) (in accordance with CIE No.15, ISO 7724/1, ASTM E1164, DIN 5033 Teil7, JIS Z8722 Condition C) |
| Integrating sphere | Φ 40 mm, Avian 3-d diffuse surface coating |
| Lighting source | CLEDs(Full Band balanced Led light Source) |
| Sensors | Dual optical path sensor array sensor |
| Wavelength range | 400~700nm |
| Wavelength interval | 10nm |
| Half the bandwidth | 5nm |
| Range of measurement | 0~200% |
| size | 475*340*150mm(L*W*H) |
| weight | About7kg |
| Operating temperature | 0~45℃, relative humidity 80% or lower (at 35°C), no water condensation |
| Storage temperature | -25°C to 55°C, relative humidity 80% or less (at 35°C), anhydrous condensation |
| Standard accessories | Power cord, color management software, drive software, data cable, black correction board, 40*10mm color plate |
| Package size | 570*500*350 mm |
| Package weight | 11kg |
Note: The appeaeance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Color management software
Facilitate the quality control and color data management.
It can digitize users' color management, compare color difference, generate test report, provide various color space measurement data, and customize customers' color management.
Ultraviolet - enhanced silicon photodiode is used
The transmittance measurement range is expanded from 0～100% to 0～200%
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Full-automatic colorimeter | 1 | Set | |
| 2 | Platinum-cobalt cuvette | 1 | Piece | |
| 3 | Saybolt cuvette | 1 | Piece | Optional |
| 4 | National Standard Colorimetric Cup | 1 | Piece | Optional |
| 5 | Special software for colorimetric determination | 1 | Piece | |
| 6 | Power cord | 1 | Piece | |
| 7 | Computer | 1 | Set | |
| 8 | Packing list | 1 | Copy | |
| 9 | Certificate warranty card | 1 | Copy |
