Intelligent Open Flash Point Analyzer RT+5℃～400℃ Android System Data Capacity 1G ASTM D92

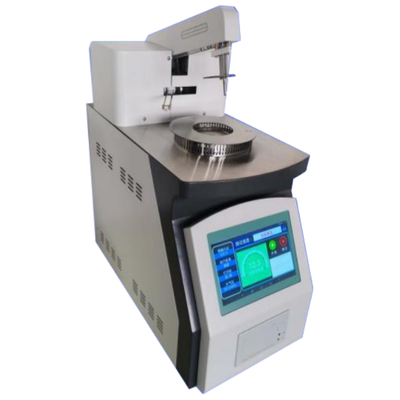

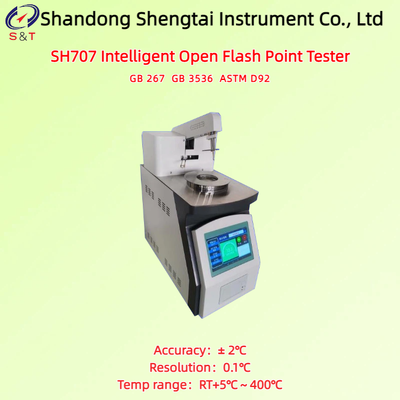

SH707 Intelligent Open Flash Point Tester

Standard: GB 267 GB 3536 ASTM D92

The SH707 Intelligent Open Flash Point Determinator combines microcomputer technology with the Android system, featuring a large-screen LCD display. The instrument follows standard methods for temperature control, automatic heating, cooling, ignition, display, flash point value locking, and result printing. After testing, it automatically cools down, achieving full automation of the entire process. Widely used in power, petroleum, chemical, commodity inspection, and research sectors, it complies with GB 267-1988, GB 3536-2008, and ASTM D92 standards.

The product features a high-definition color touchscreen, Android operating system, and "Internet plus" technology, enriching the display content and enabling internet access, document downloads, and electronic manual browsing, thereby improving human-machine interaction and simplifying operation. It also includes local area control with a storage capacity of 1G. The electrical control and mechanical structure employ new modular design technologies, ensuring durability, reliability, and safe operation. The product's industrial design enhances its modern aesthetic appeal.

Features:

● 7-inch color touchscreen with a fully Chinese human-machine interface and a label-free keyboard

● Android operating system, internet access, downloads, LAN control

● Connect to mobile apps for remote operation and control, with real-time synchronization and data export capabilities

● Automatically detect atmospheric pressure, correct its impact on the test, and calculate the correction value.

● Detection method: Loop differential detection

● Ignition, detection, and data printing are automatically completed, with the test arm rising and lowering automatically.

● Electronic ignition, forced air cooling, no gas required, automatic lighting.

● Test the flash point and ignition point of the specimen, dual-purpose machine

● Printer: Equipped with a mini printer

● Historical Data: The standalone device can store up to 1,000 records

● Barometric pressure detection device: Equipped with a built-in barometric pressure detection system, automatically correcting atmospheric pressure.

● It can ignite automatically without the need for an air source, enhancing test safety.

● Clock display (power-off retention)

● You can export the EXCEL spreadsheet via mobile and store it on a computer for long-term use, with unlimited data retention

Technical parameters:

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Package list
