Internal Combustion Engine Oil Crankshaft Simulation Analyzer RT ～ 400°C Timing 0～99h ASTM D6335
商品の詳細
| 温度制御範囲 | アルミ板（RT～400℃） | 温度制御精度 | ±1℃ |
|---|---|---|---|
| タイミング範囲 | 099H | モーター速度 | 1250rpm |
| 計器の全体的な次元 | 510*300*600mm | 計器の総重量 | 16kg |
| ハイライト | Internal Combustion Engine Oil Analyzer,Crankshaft Simulation Analyzer ASTM D6335,Petroleum Testing Instrument RT 400°C |
||
製品の説明

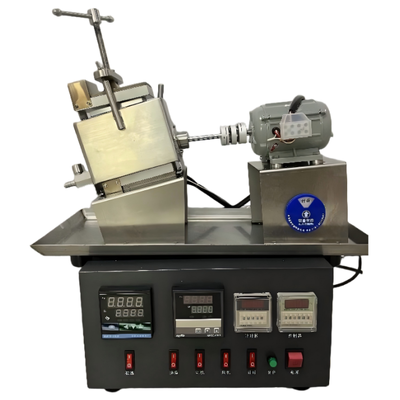

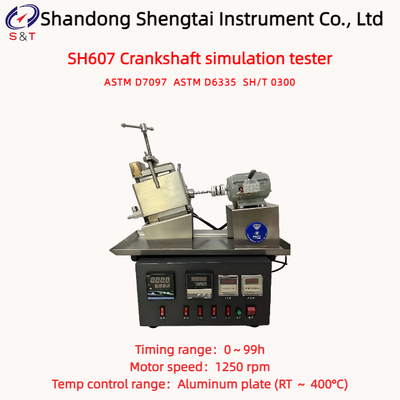

SH607 Crankshaft simulation tester
Oxidation Engine Oil Simulation Tester by ASTM D7097 and D6335
SH607 crankshaft simulation tester is designed and manufactured in accordance with the petrochemical industry standard SH/T 0300 "Method for Simulated Crankcase Test." It is suitable for evaluating the thermal oxidative stability of additives and additive-containing internal combustion engine oils, serving as a simulated testing method for selecting detergents, antioxidants, anti-corrosion agents, and composite formulations in research and development work.
This instrument consists of two parts: the control box and the main unit, arranged in an upper-lower structure. The control box is equipped with two digital temperature controllers and two digital timers. The digital temperature controllers regulate the temperature of the oil tank and test plate respectively, featuring intuitive display, convenient operation, and high temperature control accuracy. The timers enable total working time measurement and automatic control of motor rotation and stoppage. The main unit is constructed from stainless steel, characterized by a simple and aesthetically pleasing design, corrosion resistance, and other advantages
Technical parameters
| Operating power supply | AC 220V±10% 50 Hz |
| Input power | ≤1000W |
| Temp control range | Aluminum plate (RT ～ 400°C) |
| Temp control accuracy | ±1°C |
| Timing range | 0～99h |
| Motor speed | 1250 rpm |
| Motor power | 15W |
| Overall dimensions of the instrument | 510*300*600mm |
| Total weight of the instrument | 16kg |
| Test bench dimensions | 505*227*395mm |
| Net weight of test bench | 9.35kg |
| Controller dimensions | 350*300*207mm |
| Net weight of the controller | 6.64kg |
| Test bench packaging dimensions | 630*358*470mm |
| Test bench packaging weight | 15.72kg |
| Controller packaging dimensions | 850*468*289mm |
| Test bench packaging weight | 11.28kg |
| Total packaging weight | 27kg, 2 cartons on wooden pallet |
Note: The appearance images, dimensions, volume, and weight of the instrument are for reference only. If the instrument is updated, minor changes may occur without prior notice.
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Temperature sensor | 1 | Piece | On the host |
| 3 | Power cord | 1 | Piece | |
| 4 | Instructions | 1 | Copy | |
| 5 | Packing list | 1 | Copy | |
| 6 | Certificate warranty card | 1 | Copy |
