Oil Rust Prevention Humidity Test Chamber RT ～ 80℃ Test Piece Rack Speed 1/3rpm ASTM D1748
商品の詳細
| 温度範囲 | 室温～80℃、カスタム設定 | 温度変動 | ±0.5℃以下 |
|---|---|---|---|
| 試験水深さ | 200mm | 加熱および安定化時間 | 30分以内 |
| 寸法 | 750*750*12000mm | 湿度範囲 | >95%相対湿度 |
| ハイライト | oil rust test chamber,humidity test chamber ASTM D1748,test piece rack 1/3rpm |
||
製品の説明

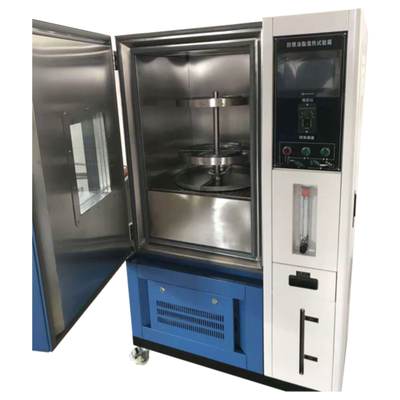

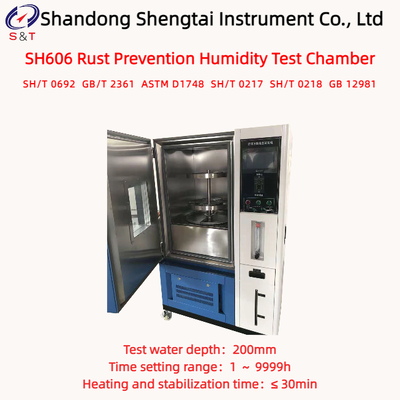

SH606 Rust Prevention Humidity Test Chamber
SH606 Rust Prevention Humidity Test Chamber is a testing device that simulates humid environments. It is used in laboratories of the petroleum, chemical and other industries, as well as universities, colleges and research institutes, for testing and evaluating the rust prevention performance of greases on metals.
The inner chamber of the test chamber is made of 304 stainless steel, and the outer shell is made of A3 steel plate (t=1mm) with plastic spraying treatment.The heating system adopts U-shaped anti-corrosive alloy high-speed heating elements.The connection parts between inner and outer chambers adopt metal materials resistant to high and low temperatures, effectively reducing heat loss.
Standards Complied
● SH/T 0692-2000 Appendix A: Rust Preventive Oils — Long-term Stacked Corrosion Test
● GB/T 2361: Test Method for Humidity Test of Rust Preventive Greases
● ASTM D1748
● SH/T 0217-1998: Rust Grade of Test Specimens for Rust Preventive Greases (formerly ZBE 41009)
● SH/T 0218-1993: Preparation of Test Specimens for Rust Preventive Greases
● GB 12981-2012 Appendix M: Brake Fluid for Motor Vehicles
Performance Features
● High-precision microcomputer digital display integrated controller for temperature/humidity control
● Temperature sensor: dual PT100 platinum resistance detectors
● Control mode: thermal balance temperature and humidity control
● Temperature control: PID + SSR synchronous coordinated control
● Automatic calculation function, which can immediately correct temperature and humidity changes for more accurate and stable control
Technical Parameters
| Temperature range | RT ～ 80℃, Custom Settings |
| Humidity range | >95% R.H |
| Temperature fluctuation | ≤± 0.5℃ |
| Test water depth | 200mm |
| Heating and stabilization time | ≤ 30min |
| Test piece rack speed | 1/3 revolutions per minute |
| Air intake | Fresh air at a rate greater than 3 times that of the box per hour |
| Time setting range | 1 ～ 9999h |
| Studio size | 450 * 450 * 600mm |
| Dimensions | 750 * 750 * 12000mm |
| Weight | 55kg |
Note:The appearance pictures, dimensions and weight of the instrument are for reference only.Slight changes may occur due to product updates without prior notice.
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| S/N | NAME | Quantity | UNIT | Remarks |
| 1 | Host | 1 | Unit | |
| 2 | Test Panel | 1 | Set | |
| 3 | Test Panel Rack | 1 | Set | On the instrument |
| 4 | Test Panel Hook | 2 | Piece | |
| 5 | Power Cord | 1 | Copy | |
| 6 | Instruction Manual | 1 | Copy | |
| 7 | Packing List | 1 | Copy | |
| 8 | Certificate & Warranty Card | 1 | Copy |
