2 Units Grease Roll Stability Testing Equipment For Gear Grease 21～38°C ASTM D1831
商品の詳細
| 加熱方法 | 電気加熱リング | タイミング方法 | デジタルタイマー |
|---|---|---|---|
| 温度制御範囲 | 21～38℃ | モーター速度 | 155～180r/min |
| 電源 | AC220V 50HZ | 総電力 | 1000W |
| ハイライト | grease roll stability testing equipment,gear grease testing equipment ASTM D1831,lubricating oil testing instrument with warranty |
||
製品の説明

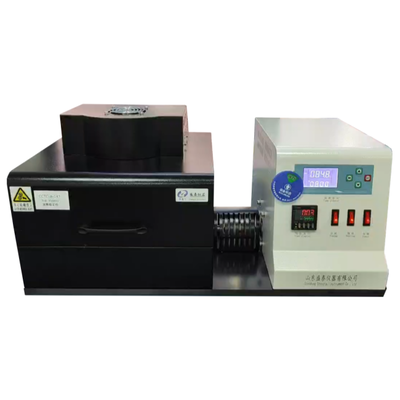

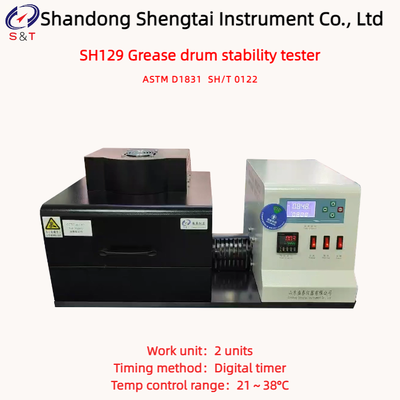

SH129 Grease drum stability tester
The SH129 Grease Roller Stability Tester complies with the standards ASTM D1831 and SH/T 0122 "Test Method for Roller Stability of Grease." When operating this instrument: a specified amount of test sample is subjected to a 2-hour test on the roller tester at room temperature, after which the working penetration of the grease is measured before and after the test. This instrument is suitable for determining the consistency changes of grease after operation on the roller tester, serving to assess the mechanical shear stability of the grease.
Performance characteristics
● Stainless steel roller, Φ90×180mm, 5kg;
● The idler wheel has a positioning ring to control the normal operation of the roller;
● The lower part is equipped with a drive motor, maintaining a rotational speed of 155 to 180 r/min;
● Belt-driven roller;
● Microcomputer temperature controller with digital display, accuracy ±5°C, equipped with PT100 sensor;
● Digital timer, records working time, with wind chime alarm;
● Capable of testing two rollers simultaneously;
● A thermometer hole is provided on the instrument box cover for temperature correction;
Technical parameters
| Standards | ASTM D1831 SH/T0122 |
| Heating method | Electric heating ring |
| Timing method | Digital timer |
| Temp control range | 21～38°C |
| Motor speed | 155～180 r/min |
| Work unit | 2 units |
| Total power | 1000W |
| Power supply | AC220V 50Hz |
| Instrument dimensions | 500*440*450mm |
| Weight | Approximately 30Kg |
| Packaging dimensions | 800*560*460mm |
| Packaging weight | 74.3kg wooden case |
Note: The appearance, dimensions, volume, and weight of the instrument are for reference only. Minor changes may occur if the instrument is updated, and no further notice will be provided.
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Goods packaging: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Roller | 2 | Piece | |
| 3 | Power cord | 1 | Piece | |
| 4 | Instruction | 1 | Copy | |
| 5 | Packing list | 1 | Copy | |
| 6 | Certificate warranty card | 1 | Copy |
