8 Channels Extreme Pressure Lubricating Oil Oxidation Stability Tester RT ～ 200℃ ASTM D2893
商品の詳細
| 温度制御方法 | 自動温度制御のためのデジタル表示温度コントローラー | 温度制御範囲 | 室温～200℃ |
|---|---|---|---|
| 温度制御精度 | 設定温度の±0.2℃ | 温度測定要素 | 熱抵抗器 |
| サンプル容量 | 8 チャンネル、8 つのサンプルを同時にテスト可能 | 楽器のサイズ | 480*360*800mm |
| ハイライト | 8-channel lubricating oil oxidation tester,high-pressure oil stability tester ASTM D2893,RT to 200℃ oxidation stability apparatus |
||
製品の説明

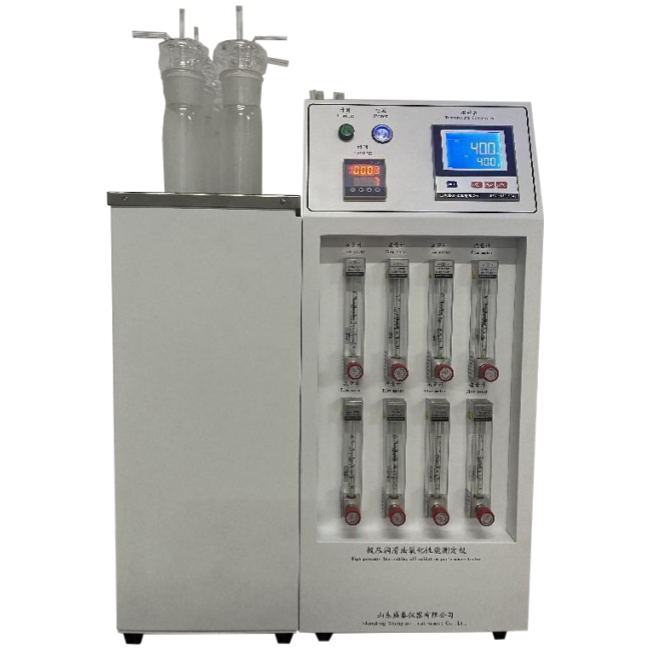

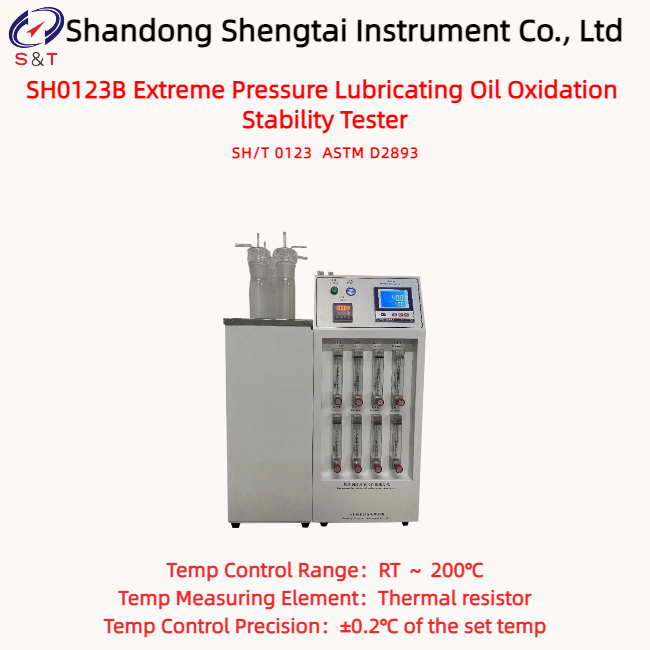

SH0123B Extreme Pressure Lubricating Oil Oxidation Stability Tester
Standard: SH/T 0123 ASTM D2893
SH0123B Extreme Pressure Lubricating Oil Oxidation Stability Tester is designed and manufactured in accordance with the requirements specified in the industry standard of the People's Republic of China, SH/T 0123 "Test Method for Oxidation Stability of Extreme Pressure Lubricating Oils". It is suitable for the determination of extreme pressure lubricating oils (such as gear oils). The operating method is as follows: the sample is exposed to constant-pressure dry air at a certain temperature for 312 hours. The oxidation stability of the oil is indicated by measuring the increase in kinematic viscosity at 100℃ and the change in sediment value of the sample.
Main Technical Features
● The instrument adopts a desktop structure, and the test tubes are designed and manufactured in accordance with the SH/T 0123 standard.
● The heating device uses a metal bath heating method with no peculiar smell.
● Equipped with 8 flow meters, whose specifications meet the requirements of the SH/T 0123 standard.
● Equipped with a digital timer for setting and recording the test time.
● Built-in air pump and purification device.
Main Technical Parameters and Indicators
| Standards | SH/T 0123 ASTM D2893 |
| Temp Control Method | Digital display temp controller for automatic temp control |
| Temp Control Range | RT ～ 200℃ |
| Flow Meter | 30-300ml/min, one flow meter connected to each oxidation tube |
| Temp Control Precision | ±0.2℃ of the set temp |
| Temp Measuring Element | Thermal resistor |
| Sample Capacity | 8 channels, capable of testing 8 samples simultaneously |
| Instrument size | 480*360*800mm |
| Instrument weight | 44.8kg |
| Package size | 540*470*825mm |
| Package weight | 69kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If the instrument is updated, there may be minor changes. No further notice will be given.
Package list
| Number | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Set | |
| 2 | Oxidation Tube | 8 | Set | |
| 3 | Hose (Inner Diameter φ6) | 1 | Piece | |
| 4 | Glass Air Guide Tube | 8 | Piece | |
| 5 | Instruction Manual | 1 | Copy | |
| 6 | Certificate of Qualification | 1 | Copy |
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Goods packaging: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
