Lab Petroleum Oil Ash Testing Apparatus RT ～ 1000℃ Coal Ash Content Analyzer ASTM D482
商品の詳細
| 加熱範囲 | 室温～1000℃ | 温度制御 | 775 ± 25の℃ |
|---|---|---|---|
| 温度制御要素 | 熱電対 | 加熱速度 | 0-20℃/min |
| 動作電源 | AC220V±10％50Hz | 定格電力 | 6000KW |
| ハイライト | Petroleum oil ash testing apparatus,Coal ash content analyzer ASTM D482,Lab oil ash tester RT to 1000℃ |
||
製品の説明

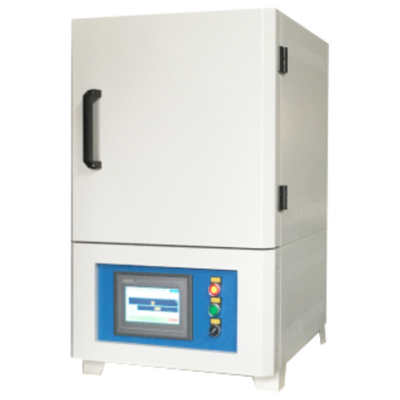

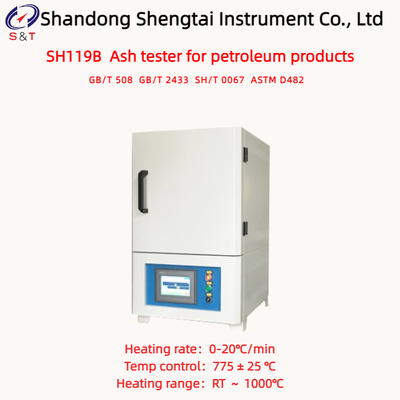

SH119B Ash tester for petroleum products
Standard: GB/T 508 GB/T 2433 SH/T 0067 ASTM D482
SH119B petroleum product ash tester is designed and manufactured according to GB/T508, GB/T2433, SH/T0067 ASTM D482 standards. It is used for the determination of ash content of oil products and lubricating grease sulfate.This instrument is suitable for the determination of ash content of petroleum products containing ash additives (including some additives containing phosphorus compounds), lubricating oil containing lead and used engine crankcase oil.The instrument adopts a new ceramic furnace as a heating body, which is suitable for detecting the ash content of sulphates in lubricating oil containing additives and additive concentrates of blending lubricating oil.
Performance characteristics
● The output is controlled via a color touchscreen
● The housing is formed by folding and welding steel plates, with an exterior electrostatic spray coating, and the heating element consists of high-quality silicon carbide rods
● The furnace chamber is composed of alumina polycrystalline fiber, featuring fast heating speed and excellent thermal insulation.
● The microcomputer-controlled system is programmable, featuring fully automatic heating, cooling, insulation, and over-temperature protection, with a programmable 16-step heating curve
● Equipped with exhaust vents to extend the service life of the ash furnace.
● Input weight to automatically calculate and display the results
Technical parameters
| Heating range | RT ～ 1000℃ |
| Temp control | 775 ± 25 ℃ |
| Temp control element | Thermocouple |
| Heating rate | 0-20℃/min |
| Uniformity of furnace temp | ≤ 15℃ |
| Furnace dimensions | 300 * 200 * 200mm L*W*H |
| Working power supply | AC220V ± 10% 50Hz |
| Rated power | 6000kW |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Package list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | High temperature heating furnace | 1 | Set | |
| 2 | Porcelain crucible | 4 | Piece | |
| 3 | Crucible tongs | 1 | Piece | |
| 4 | Power cord | 1 | Piece | |
| 5 | Fuse tube | 1 | Piece | 10A |
| 6 | Instruction manual | 1 | Copy | |
| 7 | Packing list | 1 | Copy | |
| 8 | Certificate | 1 | Copy |
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Goods packaging: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
