ASTM D2265 Over-Wide Temp Range Dropping Point Analyzer For Guideway Oil 6 Holes
商品の詳細
| 測定範囲 | 室温～400℃ | 温度制御モード | デジタルメーター、一定の温度と安定性 |
|---|---|---|---|
| テストサンプル | 6 | 正確性を表示します | ±0.1℃ |
| 暖房モード | アルミバス | 温度計の目盛り | -5～400℃ |
| 楽器のサイズ | 350*320*450mm | 楽器の重量 | 15KG |
| ハイライト | ASTM D2265 dropping point analyzer,wide temperature range guideway oil tester,6-hole lubricating oil antifreeze analyzer |
||
製品の説明

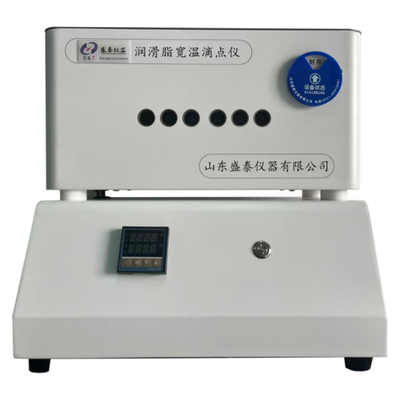

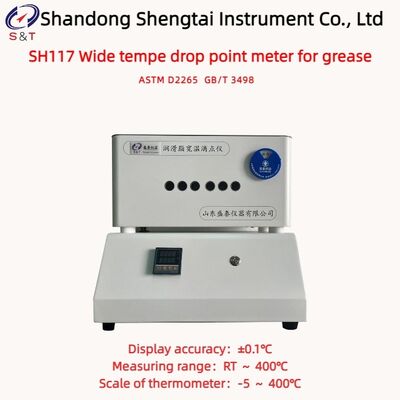

SH117 Wide tempe drop point meter for grease
Standard: ASTM D2265 GB/T 3498
SH117 wide temp range drop point tester in accordance with GB/T 3498-2008, ASTM D2265 and other standards to determine the wide temperature range drop point of grease, that is, under the specified test, the temperature at which the grease reaches a certain flow.
Over-Wide Temperature Range Lubricating Grease ASTM D2265 Dropping Point Apparatus
ASTM D2265 Wide Temperature Lubricant Grease Dropping Point Test Machine
ASTM D2265 Lubricating Grease Dropping Point Tester
Wide Temperature Range Lubricating Grease Drop Point Tester
Instrument Features
● Wide temperature lubricating grease drop point tester is suitable for measuring the drop point of lubricating grease in wide temperature range, meeting the standard requirements of GB/T 3498 "wide temperature drop point determination of lubricating grease".
● The safety of the wide temperature grease drop point tester meets the standard requirements of GB/T 32705 "Safety Code for Laboratory Instruments and Equipment Power Supply".
● Wide temperature grease drop point tester adopts aluminum bath heating, the temperature of each hole should be consistent.
● Wide temperature grease drop point tester can test 6 samples at the same time.
● The wide temperature range grease drop point tester adopts metal bath; digital display temperature control; lighting is provided at the rear of observation window; 6 holes for easy observation.
Technical specification parameters
| Measuring range | RT ～ 400℃ |
| Temp control mode | digital meter, constant temperature and stability |
| Test sample | 6 |
| Display accuracy | ±0.1℃ |
| Heating mode | Aluminum bath |
| Fat cup material | chrome plated brass, equipped with 6 pieces |
| Scale of thermometer | -5 ～ 400℃ |
| Thermometer minimum division | 1℃, comply with GB/T 514 |
| Instrument size | 350*320*450mm |
| Instrument weight | 15kg |
| Package size | 430*420*530mm |
| Package weight | 18kg |
● The 6 cups are made of chrome plated brass and come with 6 PCS.
● 7 fat cup, test tube to comply with GB/T3498 regulations.
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Dropping test tube and other sets | 6 | Set | |
| 3 | thermometer | 7 | Piece | |
| 4 | Metal rod | 1 | Copy | |
| 5 | Thermometer depth gauge | 1 | Piece | |
| 6 | Power cord | 1 | Copy | |
| 7 | Instructions | 1 | Copy | |
| 8 | Packing list | 1 | Copy | |
| 9 | Certificate warranty card | 1 | Copy |
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Goods packaging: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
