ASTM D1264 Lubricating Crease Water Washout Characteristics Analyzer RT ～ 100°C Type 204 Bearing
商品の詳細
| シンク容量 | ≥750ml | 水槽の温度管理範囲 | 室温～100℃、無段階調整可能 |
|---|---|---|---|
| ベアリング速度の精度 | 600±30r/min | 水流噴霧精度 | 5±0.5ml/s（2つのバルブで調整可能） |
| 温度計 | 0～100℃、目盛値1℃ | ベアリング仕様 | タイプ204 |
| ハイライト | ASTM D1264 lubricating grease analyzer,water washout characteristics tester,grease bearing testing instrument |
||
製品の説明

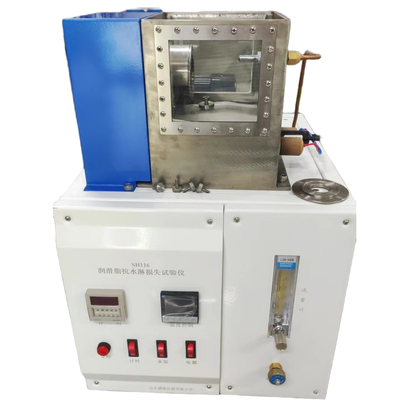

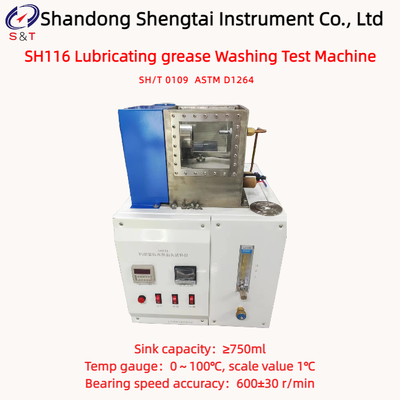

SH116 Lubricating grease Washing Test Machine
Standard: SH/T 0109 ASTM D1264
The SH116 grease water resistance tester is designed to measure the resistance of grease to water splashing in accordance with SH/T 0109-2004 "Determination of Water Resistance of Grease" and ASTM D1264 standards. It evaluates the ability of grease to resist being washed out of bearings under specified experimental conditions at 38°C and 79°C, serving as a new product assessment tool.
Lubricant water resistance: The water resistance of grease refers to its ability to withstand water impact in operating bearings, while its spray resistance indicates its capability to resist water mist impact on a flat surface.
Performance Features:
● The water bath temperature through the PT100 sensor (resistance temperature measurement package) input to the temperature controller, temperature controller internal operation circuit processing, obtain a control signal, the control signal output, so as to complete the heating control.
● The amount of water jet can be directly controlled by circulating pump, large flow valve, nozzle, etc.
● Utilizes electric heating rod for rapid heating
● Select ball bearings according to standards, with timers accurate to 0.1S
Technical parameters:
| Sink capacity | ≥750ml |
| Temp control range of the water tank | RT ～ 100°C, continuously adjustable |
| Bearing speed accuracy | 600±30 r/min |
| Water flow spray precision | 5±0.5 ml/s (adjustable with two valves) |
| Temp gauge | 0～100℃, scale value 1℃ |
| Temp control accuracy of the water tank | ±2℃ |
| Power | 600W |
| Bearing Specification | Type 204 |
| External dimensions | 300*265*425mm |
| Instrument weight | 46kg |
Note: The appearance, dimensions, volume, and weight of the instrument are for reference only. Minor changes may occur if the instrument is updated, and no further notice will be provided.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Power cord | 1 | Piece | |
| 3 | Bearing | 1 | Piece | |
| 4 | Instructions | 1 | Copy | |
| 5 | Packing list | 1 | Copy | |
| 6 | Certificate warranty card | 1 | copy |
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Goods packaging: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
