Gasoline Engine Oil Mechanical Impurity Analyzer RT ～ 100℃ Metal Bath Heating GB/T 511
商品の詳細
| 暖房モード | 金属バス加熱 | 温度制御範囲 | 室温～100℃ |
|---|---|---|---|
| 臨時雇用者の表示 | LEDデジタルディスプレイ | 正確性を表示します | ≧±400°/秒 |
| 動作電源 | AC220V±10% 50Hz | 全力 | 2.0KW以下 |
| ハイライト | Gasoline engine oil impurity analyzer,Mechanical impurity tester metal bath,Lube oil testing equipment RT 100℃ |
||
製品の説明

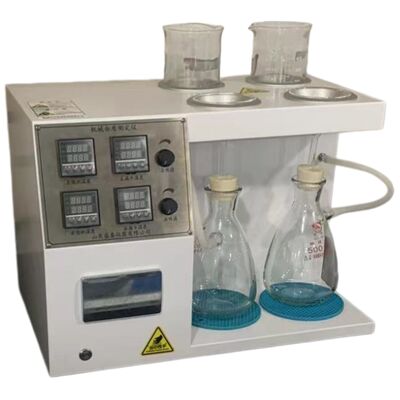

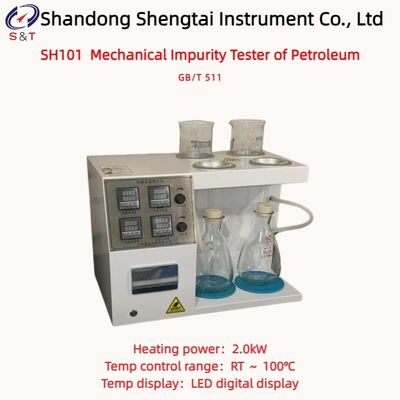

SH101 Mechanical Impurity Tester of Petroleum
The SH101 mechanical impurity analyzer is designed according to the requirements of the national standard GB/T 511 "Determination of Mechanical Impurities in Petroleum Products and Additives (Weight Method)", and is suitable for determining the content of mechanical impurities in various light and heavy oils, lubricants, and additives in petroleum products.
The water bath adopts glass bathtub, which can be loaded with 2 beakers, double control box, and can simultaneously carry out two high and low temperature filtration experiments
Method Summary
Weigh a certain amount of sample and dissolve it in the solvent used. Filter it through a constant weight filter paper or microporous glass filter. Impurities left on the filter paper or microporous glass filter are called mechanical impurities.
Petroleum Product Tester Mechanical Impurity Tester
Determination of Mechanical Impurities Tester for Petroleum Products and Additives Lab Mechanical Impurity Analyzer
Mechanical Impurity Tester of Petroleum Products and Additive by Weight Method
ASTM D4807 Mechanical Impurity Tester of Petroleum Products and Additive
ASTM D4807 Weight Method Mechanical Impurity Tester of Petroleum Products and Additive
Accuarate Petroleum Heavy Oil Lubricating Oil Mechanical Impurities Tester
Main technical parameters
| Heating mode | Metal bath heating |
| Heating power | 2.0kW |
| Temp control range | RT ～ 100℃ |
| Temp display | LED digital display |
| Display accuracy | 0.1℃ |
| Pump | Equipped with an internal air pump, no external air source required |
| Working power supply | AC220V±10% 50Hz |
| Whole power | No more than 2.0KW |
| Environment temp | ≤35℃ |
| Relative humidity | ≤85％ |
| Instrument size | 480*335*49mm |
| Instrument weight | 15kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing List
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | Built-in vacuum pump |
| 2 | Temperature sensor | 1 | Piece | In the built-in instrument |
| 3 | Suction bottle (500ml, including 9# white plug) | 2 | Set | |
| 4 | Glass funnel Ф (90) | 2 | Piece | |
| 5 | Power cord | 1 | Piece | |
| 6 | Operating instruction | 1 | Copy | |
| 7 | Certificate of approval | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee
