2 Holes Diesel Pour Point Analyzer Cold Bath Temp -40℃ ～ RT Manual Tilt ASTM D97
商品の詳細
| 冷たい風呂温度制御 | -40℃～室温 | 凝縮点測定範囲 | -25℃～室温 |
|---|---|---|---|
| 楽器のサイズ | 380*480*580mm | 冷蔵システム | 新しいタイプの冷却コンプレッサー |
| 消費電力 | 1000Wを超えないこと | 動作電源 | AC220V±10% 50Hz |
| ハイライト | 2 holes diesel pour point analyzer,manual tilt diesel fuel tester,ASTM D97 cold bath analyzer |
||
製品の説明

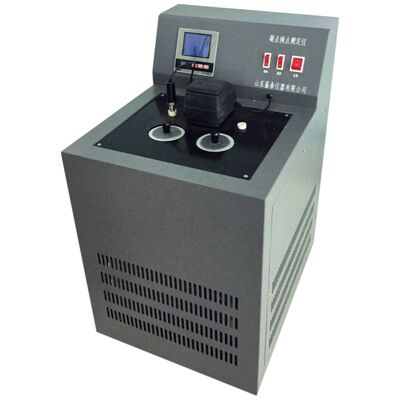

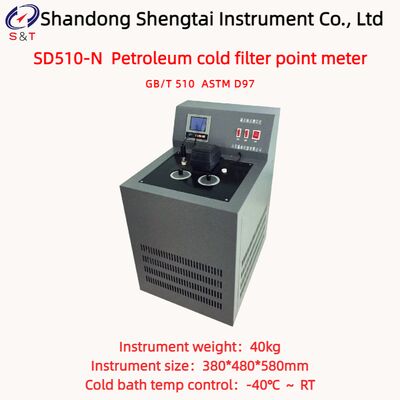

SD510-N Petroleum cold filter point meter
SD510-N Condensation point meter It is designed and manufactured in accordance with the requirements specified in the standard GB/T 510 of the People's Republic of China, and is suitable for determining the Condensation point of sample products according to the methods specified in the above two standards.
| Standards | GB/T 510 ASTM D97 |
| Test sample | Petroleum Products Chemical Products |
| Detection result | Determination of the Condensation point of petroleum products |
| Product model | SD510-N |
Performance characteristics
● The instrument adopts compressor refrigeration, which has fast cooling speed and long service life.
● The display mode adopts a small LCD display, which has good temperature control stability.
● Can conduct 2 sets of experiments simultaneously, with a single slot and 2 holes, and a fast cooling rate.
● Equipped with a pour point test tube to measure the pour point value of oil products.
● The test tube adopts a double-layer glass test tube with a frosted mouth.
● Manually tilt at 45 degrees during operation.
Main technical specifications and parameters
| Cold bath temp control | -40℃ ～ RT |
| Condensation point measurement range | -25℃ ～ RT |
| Refrigeration system | new type of refrigeration compressor |
| Working power supply | AC220V±10% 50Hz |
| Power consumption | not exceeding 1000W |
| Environmental temp | ≤ 30℃ |
| Relative humidity | ≤ 85% |
| Instrument size | 380*480*580mm |
| Instrument weight | 40kg |
| Self provided consumables required | alcohol |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
SD510-N Petroleum Condensation Point Tester Matched with a Condensation Point Test Tube Condensation Point Thermometer Conforming to GB/T51
Details of supporting petroleum product Condensation point tester
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Condensation point glass tube | 2 | Piece | Including inner tube and outer tube |
| 3 | Condensation point thermometer | 2 | Piece | |
| 4 | power cord | 1 | Piece | |
| 5 | Fuse tube | 1 | Piece | |
| 6 | instruction manual | 1 | Copy | |
| 7 | Packing list | 1 | Copy | |
| 8 | Certificate warranty card | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
