Diesel Fuel Engler Viscometer With Refrigeration 0℃～100℃ Timing 999.9s ISO 3105
商品の詳細
| 温度測定 | 0℃~100℃ | 温度制御精度 | ±0.1°C |
|---|---|---|---|
| 標準的な水価値 | 51±1秒 | 測定ボトルの仕様 | 200 ± 0.2ml |
| 時間測定 | 最大999.9秒 | 動作電源 | AC220V±10% 50Hz |
| ハイライト | Diesel fuel Engler viscometer with refrigeration,ISO 3105 compliant fuel viscometer,0℃～100℃ diesel viscosity tester |
||
製品の説明

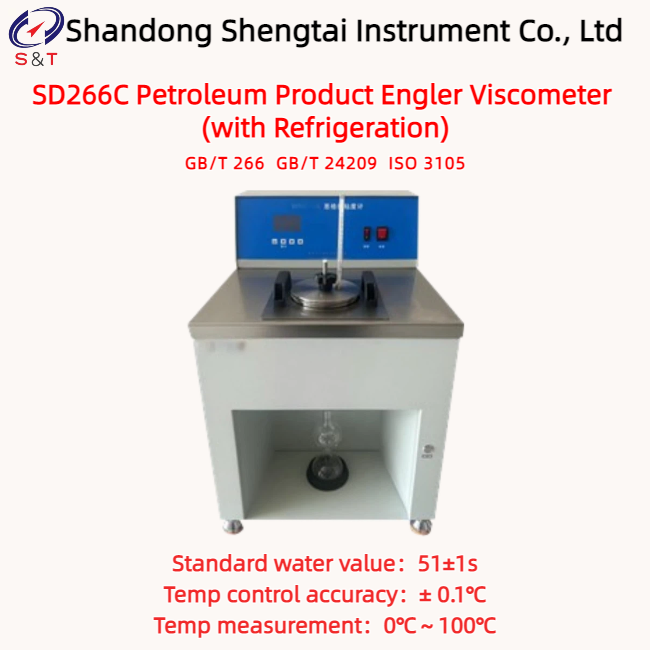

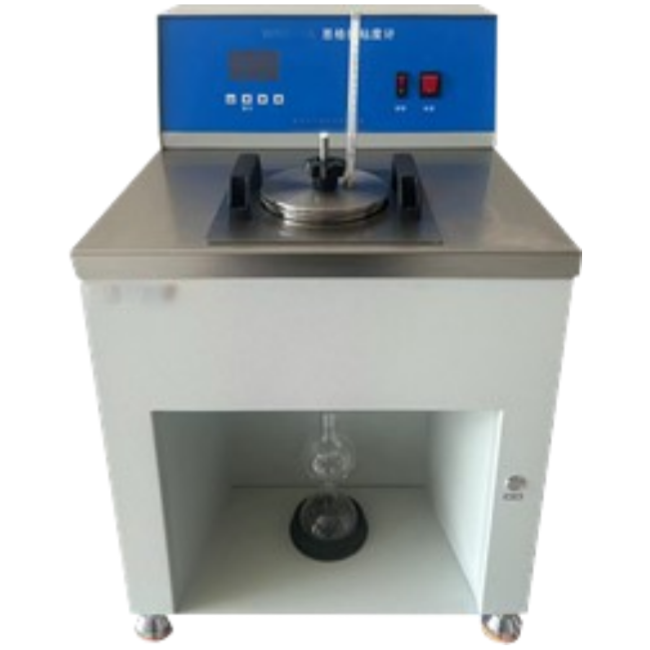

SD266C Petroleum Product Engler Viscometer with Refrigeration
The SD266C petroleum product En's viscosity meter is designed and manufactured in accordance with the requirements of the Chinese standards GB/T 266 "Determination of En's viscosity of petroleum products" and GB/T 24209.
Engler viscosity is used to determine the ratio of the time (in seconds) it takes for a liquid to flow out of an Engler viscometer at a certain temperature and volume to the time (in seconds) it takes for distilled water to flow out at 20℃, which is the Engler viscosity of the liquid, measured in Engler degrees.
Standard: GB/T 266 GB/T 24209 ISO 3105
Instrument Features
● This instrument is desktop and its smoothness meets the requirements of the test.
● The temperature controller adopts a digital temperature controller with P, I, and D position adjustment functions, which has high temperature control accuracy.
Main technical parameters and indicators
| Working power supply | AC220V±10% 50Hz |
| Standard water value | 51±1s |
| Temp measurement | 0℃～100℃ |
| Temp control accuracy | ± 0.1℃ |
| Enns viscosity thermometer | in accordance with GB514 standard and GB/T 24209-2009 method for determining wash oil viscosity |
| Inner pot | made of stainless steel material |
| Measuring bottle specification | 200 ± 0.2ml |
| Time measurement | maximum 999.9s |
| Dimensions | 320*260*430mm |
| Size | 12kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, the may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Tester (host) | Set | 1 | with Refrigeration |
| 2 | Engler thermometer | Piece | 1 | |
| 3 | Thermometer clamp | Set | 1 | |
| 4 | Wooden stopper | Piece | 1 | |
| 5 | PT100 sensor | Piece | 1 | |
| 6 | Receiving bottle | Piece | 1 | |
| 7 | Instructions | Copy | 1 | |
| 8 | Certificate | Copy | 1 |
