Newtonian Liquid Kinematic Viscosity Meter RT+10℃～100℃ Electric Heating ASTM D445
商品の詳細
| 温度制御範囲 | RT+10℃～100℃ 任意設定 | 温度制御精度 | ±0.1°C |
|---|---|---|---|
| 環境温度 | 室温 ～ 5℃ (本製品は一般的に40℃での粘度測定に使用されます) | 火力 | 1800W |
| 暖房モード | 電気加熱 | 動作電源 | AC220±10% 50Hz |
| ハイライト | Newtonian viscosity meter electric heating,Kinematic viscosity tester ASTM D445,Diesel fuel viscosity meter RT+10℃～100℃ |
||
製品の説明

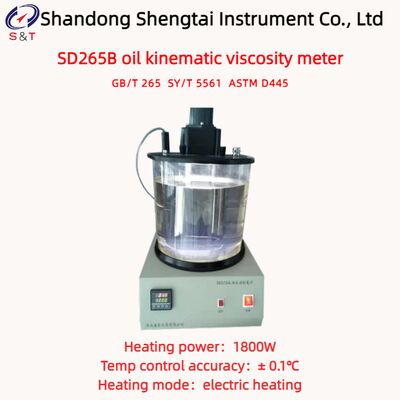

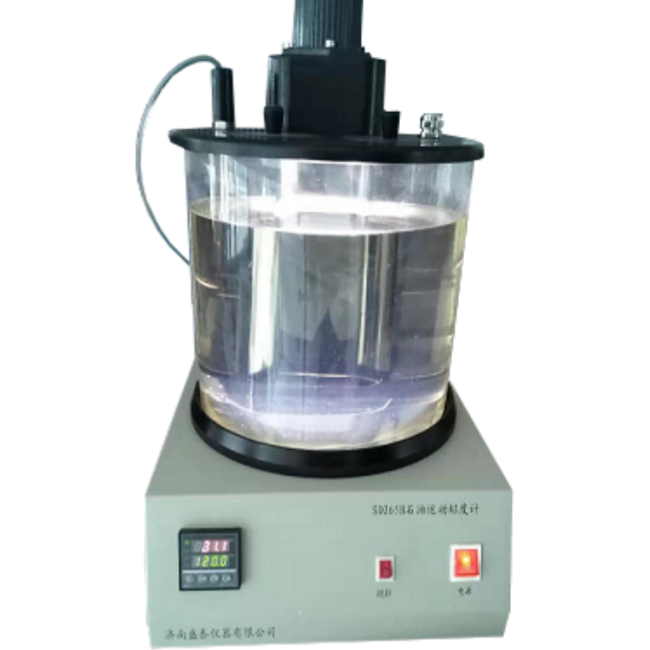

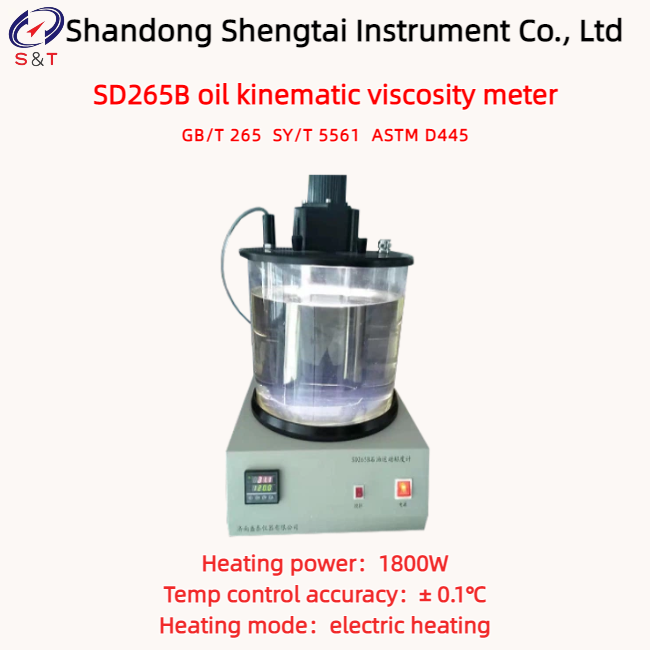

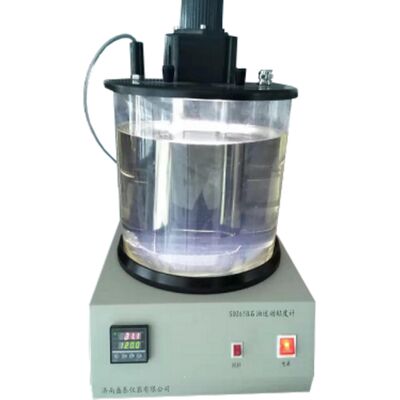

SD265B oil kinematic viscosity meter
The manufacturing of SD265B petroleum kinematic viscosity tester complies with the requirements specified in the industry standard SY/T5561 "Technical Conditions for Petroleum Product Kinematic Viscosity Testers" of the People's Republic of China, and is applicable to the provisions of the Chinese standard GB/T 265 "Determination of Petroleum Product Kinematic Viscosity and Algorithm for Dynamic Viscometers".
Kinematic viscosity is used to determine the kinematic viscosity of liquid petroleum products (referring to Newtonian liquids) at a constant temperature conditionHigh Precision Double Layer Kinematic Viscosity Meter
ASTM D445 Asphalt Kinematic Viscosity Tester
ASTM D445 Asphalt Kinematic Viscosity Tester with High Temperature(Capillary Viscometer Method)
Oil Kinematic Viscosity Unit with Standard Capillary Viscometer
Pinkevitch Viscometer
Main technical features
● The instrument adopts the form of all-in-one machine, and the control switch adopts the form of light touch key. It has the advantages of novel design, compact structure, beautiful and generous.
● Adopt intelligent digital display temperature controller, rapid temperature control, quick response, small overshoot, temperature control accuracy up to ±0.1℃.
● The use of hard glass tank and electric mixing device, the sample observation is clear, the temperature in the bathtub is uniform.
● Two groups of tests can be carried out simultaneously.
Main technical parameters and indicators
| Working power supply | AC220±10% 50Hz |
| Heating mode | electric heating |
| Heating power | 1800W |
| Mixing motor power | 6W |
| Speed | 1200r/min |
| Temp control range | RT+10℃～100℃ Any Settings |
| Temp control accuracy | ± 0.1℃ |
| Environmental temp | RT ～ 5℃ (this product is generally used to measure viscosity at 40 degrees) |
| Relative humidity | ≤ 85% |
| Instrument size | 320 * 380 * 530 mm |
| Instrument weight | 12kg |
| Packaging size | 470 * 420 * 620 mm |
| Packaging weight | 16.2kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Note: Need to bring your own heating medium and stopwatch
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Water bath crock | 1 | Piece | 1 |
| 3 | Water bath top cover assembly | 1 | Piece | It has two capillaries |
| 4 | Thermometer | 2 | Piece | Thermometer |
| 5 | Power cord | 1 | Piece | |
| 6 | Fuse tube | 1 | Piece | 10A |
| 7 | Capillary viscometer | 4 | Piece | Can choose |
| 8 | Operating instruction | 1 | Copy | |
| 9 | Ear suction ball | 1 | Piece | |
| 10 | Packing list | 1 | Copy | |
| 11 | Certificate of approval | 1 | Copy |
Select the aperture of the viscosity tube based on the viscosity value
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
