Pesticide Specific Rotation Tester Optical Rotation ±89.99° Peltier Temp Control NYT 1860.18
商品の詳細
| 温度管理方法 | パセル・パッチに組み込まれた | 測定精度 | ±0.01°(-45°≤光回転≤+45°) |
|---|---|---|---|
| 測定範囲 | 光回転±89.99° | 表示方法 | 7インチのTFTタッチスクリーン |
| 出力方法 | USB、RS232 | データストレージ | 1000 |
| 楽器の純重量 | 24kg | 電源 | 220V±22V 50Hz±1Hz 250W |
| ハイライト | Pesticide rotation tester ±89.99°,Optical rotation tester Peltier control,Food testing instrument with warranty |
||
製品の説明

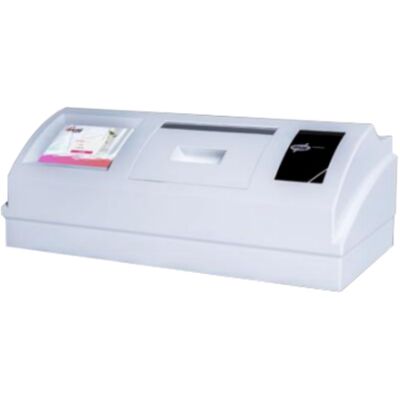

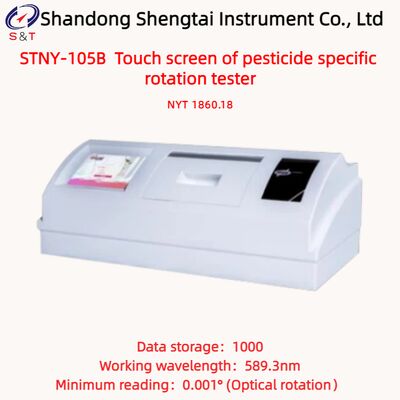

STNY-105B Touch screen of pesticide specific rotation tester
The STNY-105B pesticide specific rotation meter is designed and manufactured in accordance with the NYT 1860.18-2010 Guidelines for Testing the Physical and Chemical Properties of Pesticides Part 18: Specific Rotation Method. It is a specialized instrument for measuring the specific rotation of pesticides. Using touch screen display and LED or other cold light sources, it has a long service life and can detect optical rotation, specific rotation, concentration, etc
Specific optical rotation
At a certain temperature T, the specific rotation of polarized light at a specific wavelength passing through a 1dm light tube and a 1g/L liquid of light substance is called the specific rotation at that wavelength and temperature.
Performance characteristics
● Built in Peltier temperature control to improve accuracy and stability.
● LED light sources with a lifespan exceeding 100000 hours make up for the shortcomings of short lifespan and easy damage;
● To ensure the measurement accuracy of the results, the temperature control technology of the instrument adopts a built-in Parcel patch, replacing the traditional flow cell;
● The measurement range has been upgraded to ± 89 ° (optical rotation), improving the limitations of the measurement sample and enhancing its selectivity;
● The control adopts systematization, high integration, full automation, and is convenient and easy to operate;
● Upgradeable multi-level synchronous retrieval function, which can retrieve historical data based on test date, sample number, etc.
Main technical parameters
| Power supply | 220V±22V 50Hz±1Hz 250W |
| Display method | 7-inch TFT true color touch screen |
| Light source | LED Cold light source+high-precision interference filter |
| Measurement mode | Optical rotation, specific rotation, concentration |
| Measuring range | Optical rotation±89.99° |
| Measurement accuracy | ±0.01°(﹣45°≤Optical rotation≤+45°) |
| Temperature control method | Built in Parcel Patch |
| Temperature range | 15℃-35℃(peltier) |
| Temperature control accuracy | ±0.2℃ |
| Minimum reading | 0.001° (Optical rotation) |
| Repeatability | (standard deviation s)0.002°(Optical rotation) |
| Minimum transmittance of measurable samples | 1% |
| Working wavelength | 589.3nm |
| Thermostatic rotation detection tube | 100mm |
| Output method | USB, RS232 |
| Net weight of instrument | 24kg |
| Data storage | 1000 |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Quantity | Unit | Remarks | |
| 1 | Main engine | 1 | Set | ||
| 2 | Thermostatic rotary tube 100mm | 1 | Piece | ||
| 3 | Test tube protective film | 8 | Piece | spare | |
| 4 | Test tube rubber gasket | 8 | Piece | spare | |
| 5 | Power cord, RS232 interface cable | 1 each | Piece | ||
| 6 | Fuses(1.5A,3A) | 8 | Piece | 4 each , spare | |
| 7 | Screwdriver | 1 | Piece | ||
| 8 | User manual | 1 | Copy | ||
| 9 | Product Qualification Certificate | 1 | Copy | ||
