SAG Jelly Strength Tester Measurement 0 ～ 79.8mm Sag Accuracy 0.01mm QB2484
商品の詳細
| 測定範囲 | 0～79.8mm | 時計制御装置 | 自由設定、時間誤差±0.1s以内 |
|---|---|---|---|
| 解決 | 0.01mm | ガラスカップの高さ | 7.94±0.1cm（標準7.85cm） |
| 弛みの正確さ | 0.01mm | 持ち上げブラケット | 粗調整と微調整のためのデュアルリフトおよび調整機構により、標準ロッドとサンプル面の位置合わせが容易になります |
| ハイライト | SAG jelly strength tester,food testing instrument with 0.01mm accuracy,QB2484 jelly measurement device |
||
製品の説明

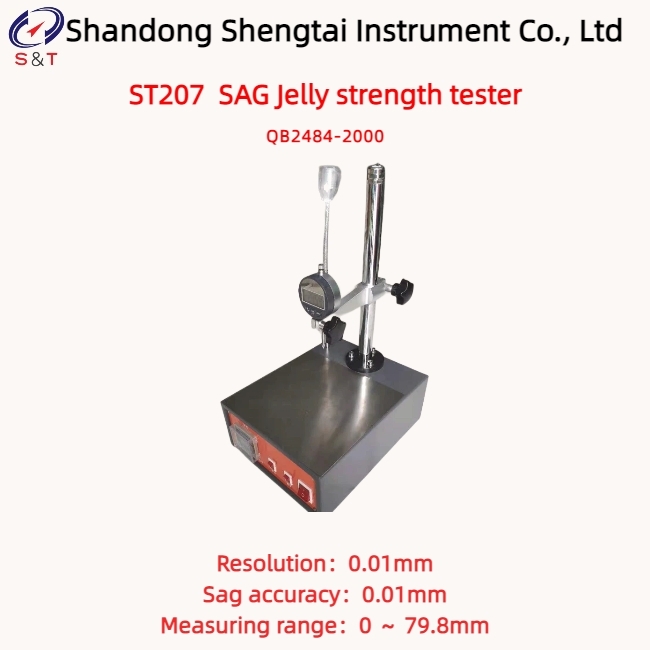

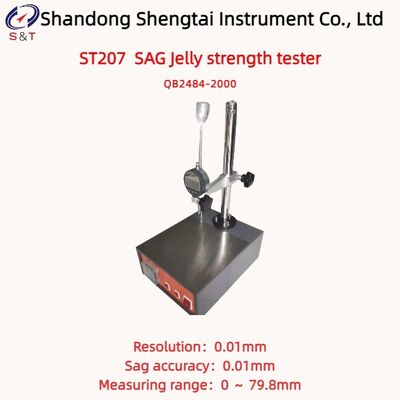

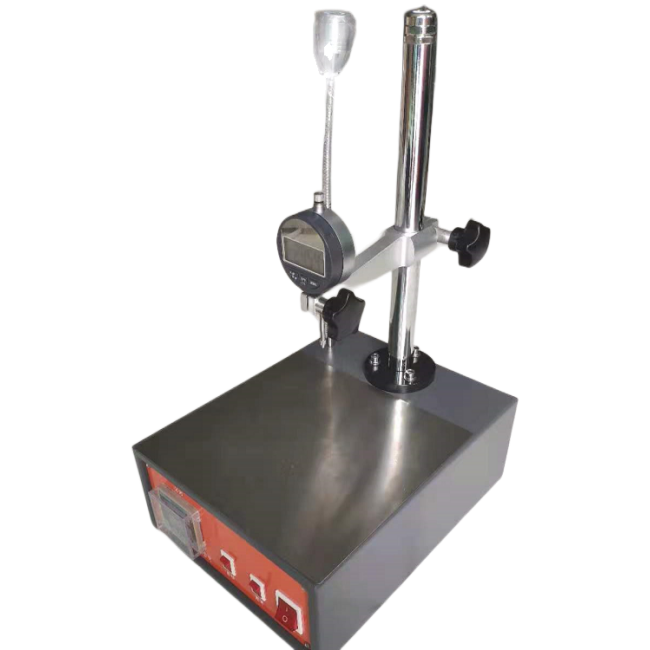

ST207 SAG Jelly strength tester
ST207 jelly strength tester is designed and manufactured according to the requirements specified in the pectin standard QB2484-2000, and is mainly used to measure the strength of jelly. Pectin gel strength tester (SAG)
Main technical features
1. Digital display is used to display the depression value, which is intuitive and eye-catching.
2. The digital display of the time control device can be adjusted arbitrarily from 0 ～ 99 minutes.
3. With coarse and fine adjustment functions of the lifting frame, it is convenient to adjust and accurate to align the needle.
Main technical parameters
| Measuring range | 0 ～ 79.8mm |
| Time control device | Free setting, time error of less than ± 0.1s |
| Resolution | 0.01mm |
| Glass cup height | 7.94±0.1cm(standard 7.85cm) |
| Sag accuracy | 0.01mm |
| Lifting bracket | dual lifting and adjusting mechanisms for coarse and fine adjustment, facilitating the alignment of the standard rod with the plane of the sample |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| No | Name | Unit | Number |
| 1 | Instrument host | 1 | |
| 2 | Standard Column | ||
| 3 | Standard glass | 3 | |
| 4 | Fuse 5A (∮5×20) | 1 | |
| 5 | Power cord (250V 6A) | 1 | |
| 6 | instruction manual | 1 | |
| 7 | Factory certificate card | 1 |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
