Abbes Refractometer ND=1.300 ～ 1.700 Sugar 0 ～ 95% External Cooling Circulation ST121A
商品の詳細
| 測定範囲 | ND=1.300 ～ 1.700 | 測定精度 | 0.0002 |
|---|---|---|---|
| 屈折率 (ND) の最小分割値 | 0.0005 | 糖分濃度の最小目盛り（％） | 0.25 |
| 楽器の重量 | 4kg | 木箱の寸法 | 140*100*235mm |
| ハイライト | Abbe refractometer sugar concentration tester,Refractometer ND 1.300-1.700 range,External cooling circulation feed analyzer |
||
製品の説明

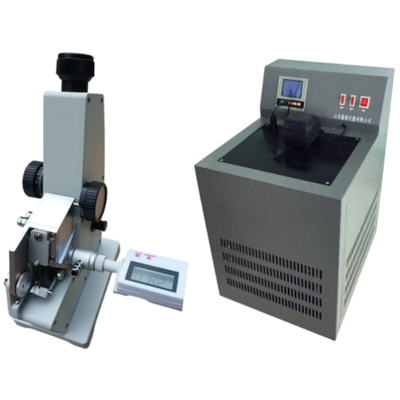

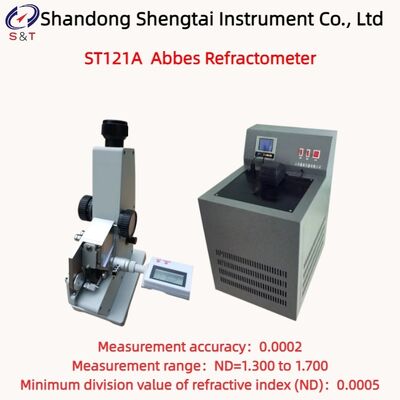

ST121A Abbes Refractometer
The ST121A Abbe refractometer is an instrument capable of measuring the refractive index ND and the average dispersion NF-NC of transparent or semi-transparent liquids or solids. When equipped with a thermostatic device, it can determine the refractive index ND within a temperature range of 0°C to 70°C and measure the sugar concentration in a solution from 0% to 95% (corresponding to refractive indices of 1.333 to 1.531).
Therefore, this type of instrument is an indispensable essential equipment for factories, schools, and research institutions in the petroleum industry, oil refining industry, pharmaceutical industry, paint manufacturing industry, food industry, daily chemical industry, sugar industry, and geological exploration.
Abbe Refractometer Specifications:
| Measurement range | ND=1.300 ～ 1.700 |
| Measurement accuracy | 0.0002 |
| Minimum division value of refractive index (ND) | 0.0005 |
| Minimum scale division of sugar concentration (%) | 0.25 |
| Sugar concentration measurement range (%) | 0～95 |
| Temp display range (minimum reading 0.1°C) | 0～50°C (with dedicated temp control device) |
| Refrigeration cycle mode | External refrigeration cycle |
| Instrument weight | 4kg |
| Wooden box dimensions | 140*100*235mm |
Note: The appearance images and dimensions (volume and weight) of the instrument are for reference only. If the instrument is updated, there may be slight changes without further notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to your company:
The provided instruments and materials are brand new, compliant with national quality standards, and accompanied by manufacturer certification;
The provided materials and main components comply with the technical requirements specified in the technical documentation;
The overall equipment warranty period is one year (excluding normal wear and tear of consumable parts).
For instrument quality issues arising during the warranty period, we will provide free repairs. In cases where equipment malfunctions are caused by the user's responsibility, we will undertake repairs at reasonable charges.
Lifelong discounted supply of parts and lifetime maintenance and repair of the entire machine.
After the warranty period expires, we will only charge the cost price for repairs and technical services when the user requests them.
Packing List
| No. | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Unit | |
| 2 | Bromonaphthalene | 1 | Bottle | |
| 3 | Standard specimen | 1 | Piece | |
| 4 | Power cord | 1 | Strip | |
| 5 | Fuse tube | 1 | Piece | 10A inside the insurance seat |
| 6 | Instruction Manual | 1 | Copy | |
| 7 | Certificate of Conformity Warranty Card | 1 | Copy |
