Automatic Sugar Cube Hardness Tester Measure 0 - 50MPa Save 199 Sets Of Date GB/T 35888
商品の詳細
| 測定範囲 | 0-50MPA | 表示エラー | ±1% |
|---|---|---|---|
| 円形の圧力プレートの直径 | 60mm | 解決 | 0.1N |
| 作動ストローク | 1～70mm | 兆候の変動性 | <1% |
| ハイライト | Automatic sugar cube hardness tester,Sugar cube tester 0-50MPa,Food testing instrument with data storage |
||
製品の説明

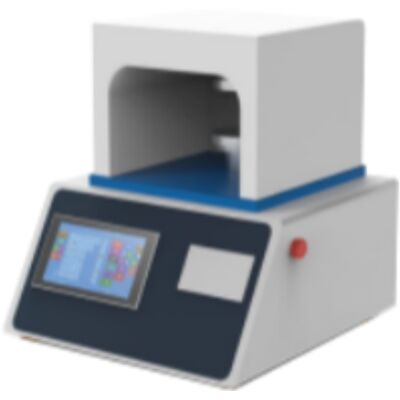

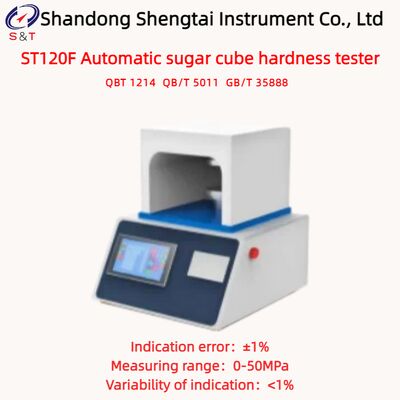

ST120F Automatic sugar cube hardness tester
ST120F Automatic sugar cube hardness tester is our company according to the standard QBT 1214-2002 sugar cube and QB/T 5011-2016 sugar cube test method GB/T 35888-2018 sugar cube regulation research and development using modern mechanical design concept and microcomputer processing technology for careful and reasonable design of a new type of high-precision intelligent tester, the use of advanced components, supporting components, single-chip microcomputer, reasonable structure and multi-functional design, configuration of liquid crystal Chinese display, It has various parameter testing, conversion, adjustment, display, memory, printing and other functions included in the standard.
Standard: QBT 1214 QB/T 5011 GB/T 35888
Product features
1. Modern design concept of mechatronics, compact structure, beautiful appearance, convenient maintenance;
2. The instrument adopts the upper pressure plate fixed type, high-precision load cell to ensure the rapidity and accuracy of the instrument force value data collection; High measurement accuracy.
3. Using high-speed ARM processor, high degree of automation, fast data collection, automatic measurement, intelligent judgment function, safe and reliable with powerful data processing function, can directly obtain the statistical results of various data, and can automatically reset, easy to operate, easy to adjust, stable performance.
4. It can display the curve of pressure and deformation, and display information such as pressure resistance and deformation in real time;
5. Modular integrated thermal printer, fast printing speed and convenient paper change;
Product parameters
| Standard printing | standard micro printer Automatic measurement Automatic thermal printing |
| Measuring range | 0-50MPa |
| Storage mode | experimental results can store 199 sets of historical data, easy to query; |
| Indication error | ±1% |
| Variability of indication | <1% |
| Resolution | 0.1N |
| Working stroke | 1 ~ 70mm |
| Round pressure plate diameter | 60mm |
| Working environment |
temperature (20 ± 10 )°C; Relative humidity < 85% |
| Dimensions | 530 * 350 * 580 mm (L*W*H) |
| Weight approx. | 55kg |
| Result output: | At the same time, it can be equipped with U disk output function, output to PC for long-term storage |
| Output format | The output format of the resulting U disk is CSV or excel. |
| Data analysis function | There are real-time display of compression curve function and data analysis management, saving, printing and other functions |
| Storage function | It can store data on a microcomputer, and can be equipped with a U disk to output data |
| Display | Man-machine interface Chinese and English menu; LCD display |
| Printout Modular integrated thermal printer | |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N | name | Quantity | unit | remarks |
| 1 | Host | 1 | Set | |
| 2 | Power cord | 1 | Pieces | |
| 3 | Fuse tube | 1 | Pieces | Inside the seat10A |
| 4 | Instruction manual certificate | 1 | Copy | |
| 5 | Warranty card | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
