Feed Texture Analyzer Test 1-500mm/Min Fertilizer Hardness Travel 360mm ST-16A
商品の詳細
| サンプルを測定する | 肥料、穀物、油、飼料、農産物など | 力感知要素 | 2、5、10、20、30、50、100kg |
|---|---|---|---|
| 力解像度 | 0.01kg | 変形解像度 | 0.01mm |
| テスト速度 | 1～500mm/min（無段階速度調整） | 移動距離 | 360 mm (必要に応じて調整可能) |
| ハイライト | feed texture analyzer 1-500mm/min,fertilizer hardness tester 360mm travel,ST-16A feed testing instrument |
||
製品の説明

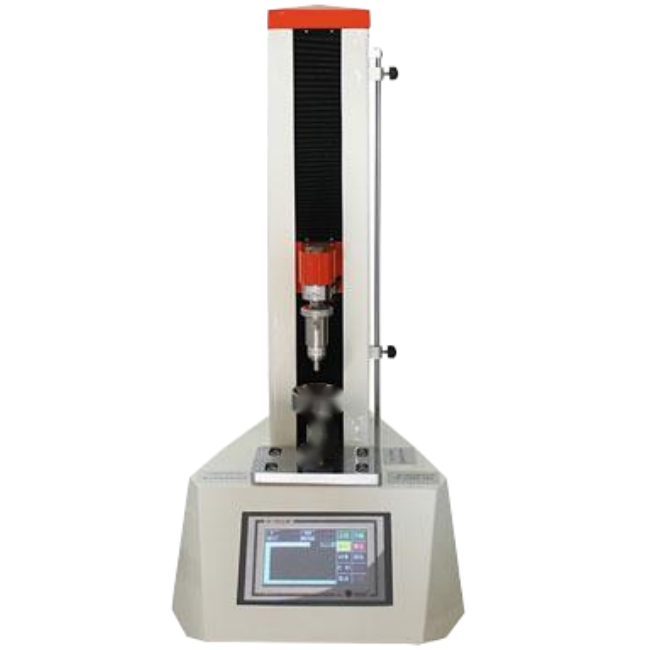

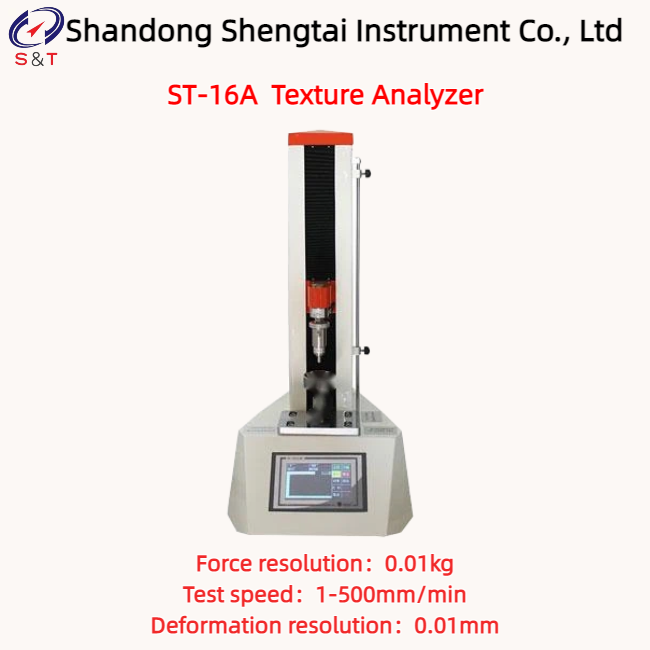

ST-16A Texture Analyzer
The ST-16A Texture Analyzer primarily consists of the standalone software dedicated to the texture analyzer main unit, spare probes, and accessories. Its basic structure generally comprises a mechanical device capable of inducing deformation in the sample, a container for holding the sample, and a recording system for capturing force, time, and deformation rate. Testing and result analysis are centered around distance, time, and force. The physical property analyzer primarily reflects texture characteristics related to mechanical properties, and its results exhibit high sensitivity and objectivity. The results can be accurately quantified through the dedicated software provided, allowing for an objective and comprehensive evaluation of the item using quantitative indicators.
It is suitable for automatic testing of grain and feed particle hardness in various fields such as chemical fertilizer, grain and oil, feed, and agricultural product quality inspection.
Features:
● Utilizing microcontroller control and an LCD display screen, the motor-driven feeding mechanism automatically measures, and the instrument can automatically calculate data such as maximum, minimum, average, and standard deviation. The test data results can be printed.
● Achievable testing methods include penetration, hardness, pressure, and more
The transmission mechanism utilizes ball screws for smooth and precise transmission, and adopts imported servo motors for low noise and precise control
● Equipped with a 24-bit high-precision AD converter and a high-precision force sensor, the instrument ensures rapid and accurate force data acquisition.
● During the test, real-time display of force-time, force-deformation, force-displacement, etc
Product Parameters
| Force sensing elements | 2, 5, 10, 20, 30, 50, 100 Kg |
| Force resolution | 0.01kg |
| Deformation resolution | 0.01mm |
| Test speed | 1-500mm/min (stepless speed adjustment) |
| Travel distance | 360 mm (adjustable as needed) |
Note: The appearance pictures, dimensions, volume and weight are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
The instruments and materials provided are brand new, meet national quality standards, and come with manufacturer's certification
The materials and main components provided meet the technical requirements specified in the technical documentation;
The warranty period for the entire equipment is one year (excluding normal wear and tear of consumable parts).
----We are responsible for free maintenance of any instrument quality issues that arise during the warranty period. If the equipment malfunctions due to the user's responsibility, we will repair it and charge a reasonable fee.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair for the entire machine.
After the warranty period expires, if the user requires maintenance and technical services, we will only charge for the cost.
