Grain Hardness Touch Screen Texture Analyzer Test 1-500mm/Min Single Experiment ST-16A
商品の詳細
| 試験指標 | 硬度、引張強さ、圧力などのさまざまな物性 | 力センシング要素 | 0.5、1、2、5、10、20、30、50、100kg |
|---|---|---|---|
| 力解像度 | 0.01kg | 変形解像度 | 0.01mm |
| テスト速度 | 1～500mm/min（無段階速度調整） | 移動距離 | 360 mm (必要に応じて調整可能) |
| ハイライト | grain hardness texture analyzer,flour test instrument with warranty,touch screen texture analyzer ST-16A |
||
製品の説明

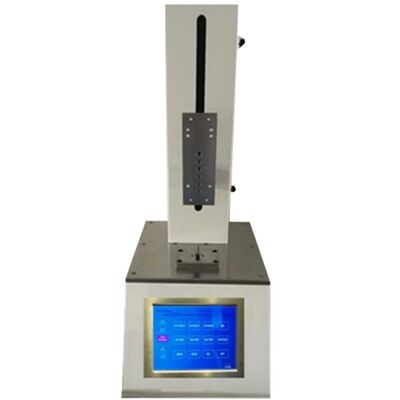

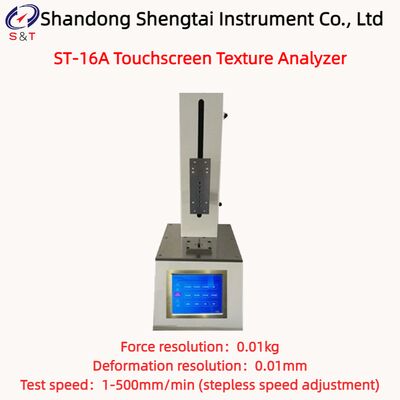

ST-16A Touchscreen Texture Analyzer Single Experiment
The ST-16A touchscreen texture analyzer, as a sensory physical property analysis instrument, can be used to detect physical property indicators of samples in the fields of food, biology, pharmaceuticals, and chemical engineering. It can measure the hardness, tensile strength, strength, pressure, and more of food and dough
The ST-16A physical property analyzer (texture analyzer) mainly includes dedicated software for the standalone version of the texture analyzer, spare probes, and accessories. Its basic structure generally consists of a mechanical device capable of deforming the sample, a container for holding the sample, and a recording system for recording force, time, and deformation rate. Testing and result analysis are conducted around distance, time, and force. The physical property analyzer mainly reflects texture characteristics related to mechanical properties. Its results are highly sensitive and objective, and can be accurately quantified through the equipped dedicated software, allowing for an objective and comprehensive evaluation of the item using quantitative indicators.
Product Introduction:
● Used for physical property testing of meat products, grain and oil foods, cereals, candies, fruits and vegetables, and other foods
● Test indicators: various physical properties such as hardness, tensile strength, pressure, etc
● The testing process is completed through an LCD touch screen, featuring a built-in normal mode (single experiment), etc
● It can complete basic physical property testing and analysis of most food samples, such as baked goods, dairy products, meat products, fruits and vegetables, grain and oil, gel, snack processed foods, and so on
● Realizable testing methods include penetration, hardness, pressure, and so on
The transmission mechanism utilizes ball screws for smooth and precise transmission, and adopts imported servo motors for low noise and precise control
● Equipped with a 24-bit high-precision AD converter and a high-precision force sensor, the instrument ensures rapid and accurate force data acquisition.
● During the test, real-time display of force-time, force-deformation, force-displacement, etc
Product Parameters
| Force sensing element | 0.5, 1, 2, 5, 10, 20, 30, 50, 100 Kg |
| Force resolution | 0.01kg |
| Deformation resolution | 0.01mm |
| Test speed | 1-500mm/min (stepless speed adjustment) |
| Travel distance | 360 mm (adjustable as needed) |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing List
| No. | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Unit | |
| 2 | AC power cord | 1 | Strip | |
| 3 | Sensor Sensor Element | 1 | Piece | |
| 4 | Cylindrical probe | 1 | Piece | |
| 5 | Probe converter | 1 | Piece |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
