Gual Holes Diesel Oil Lubricating Oil Cold Filter Point Tester RT ～ -50℃ Metal Bath ASTM D6371
試供品およびクーポンのための私に連絡しなさい。
ワットサンプ:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| テストサンプル | 2つのグループ | 出力モード | 小さいLCD表示 |
|---|---|---|---|
| 冷却方法 | メタルバス | 温度制御範囲 | rt～ -50℃ |
| コールドフィルターポイント測定範囲 | 室温～-35℃ | 温度制御精度 | ±0.5℃ |
| 環境温度 | ≤30℃ | 相対湿度 | ≤85％ |
| ハイライト | Diesel oil cold filter tester,Lubricating oil metal bath tester,ASTM D6371 oil testing equipment |
||
製品の説明

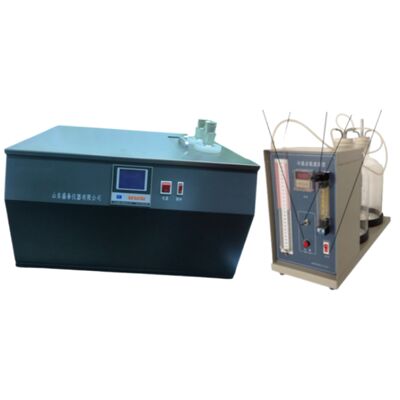

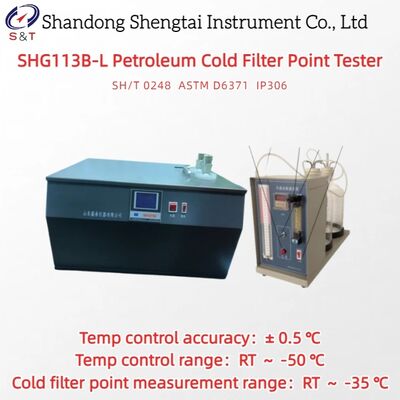

SHG113B-L Petroleum Cold Filter Point Tester
The SHG113B-L petroleum cold filter point tester is designed and manufactured in accordance with the requirements of the People's Republic of China standard SH/T0248, and is suitable for determining the cold filter point of petroleum products using the methods specified in the above standards.
Standard: SH/T 0248 ASTM D6371 IP306
Cold filter point refers to the highest temperature at which oil passes through the filter at a rate of less than 20ml per minute under specified conditions (i.e. the lowest ambient temperature used for the flow point)
Main technical specifications, parameters, and performance characteristics:
| Test samples | 2 groups |
| Output mode | Small LCD display |
| Cooling method | metal bath |
| Filter | Single hole filter |
| Working power supply | AC220V ± 10% 50Hz |
| Temp control range | RT ～ -50 ℃ |
| Cold filter point measurement range | RT ～ -35 ℃ |
| Temp control accuracy | ± 0.5 ℃ |
| Refrigeration system | New type of refrigeration compressor (dual compressor) |
| Environmental temp | ≤ 30 ℃ |
| Relative humidity | ≤ 85% |
| Power consumption | not exceeding 1500W |
| Packaging size | 890 * 530 * 480mm |
| Weight | 75kg |
● Using a compressor for refrigeration, two sets of tests can be conducted simultaneously.
● The output mode is a small LCD display with good temperature control stability.
● The host is cooled by a metal bath, without the need to replace the medium alcohol, resulting in rapid cooling.
● Imported stacked compressor
● Single hole suction filter
● Cold filter point measurement range: from room temperature to minus 35 degrees Celsius
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Details of the Cold Filter Point Tester for Petroleum Products
| Number | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Unit | |
| 2 | Cold filtration point test tube | 2 | Piece | |
| 3 | Cold filter point thermometer | 2 | Piece | |
| 4 | Cold filter siphon tube | 1 | Piece | |
| 5 | Cold filter point filter screen | 1 | Piece | |
| 6 | Main components of cold filter point filter | 1 | Piece | |
| 7 | Cold filter point suction filter | 1 | Unit | |
| 8 | Power line | 1 | Strip | |
| 9 | Operation instructions | 1 | Copy | |
| 10 | Packing list | 1 | Copy | |
| 11 | Certificate of Conformity Warranty Card | 1 | Copy |
