2 Holes Residual Fuel Oil Total Sediment Tester ASTM D4870 25g Sample Hot Filtration Method
試供品およびクーポンのための私に連絡しなさい。
ワットサンプ:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| テストサンプル | 25G | テスト単位 | 2 |
|---|---|---|---|
| 不用なフラスコ容量 | 500ml | 測定範囲 | 0.5% （m/m） |
| 濾紙の絞り | 0.0016mm | 機器のサイズ | 640*330*570mm |
| 仕事の電源 | AC220V 50Hz | 全力 | 1000W |
| ハイライト | 2 holes residual fuel oil tester,ASTM D4870 sediment tester,hot filtration oil testing equipment |
||
製品の説明

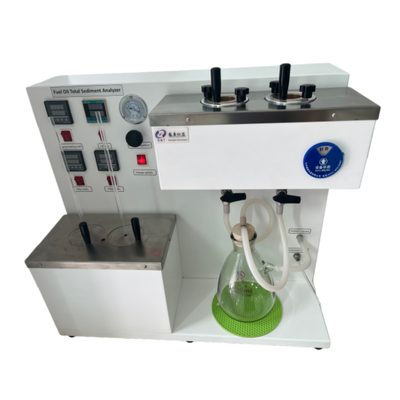

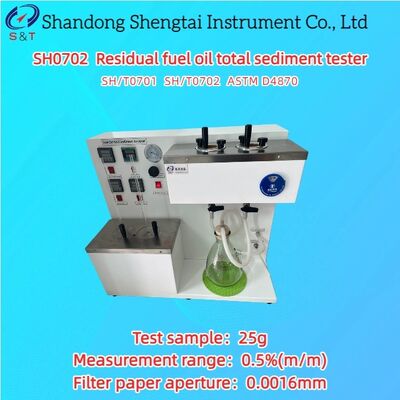

SH0702 Residual fuel oil total sediment tester
The residual fuel oil total sediment tester is designed and manufactured in accordance with SH/T 0701 and SH/T 0702 Residual fuel oil total sediment determination method (aging method, thermal filtration method). This method is applicable to the determination of total sediment in residual fuel oil with viscosity less than 55mm²/s at 100℃ and distillate fuel oil mixed with residual components.
This instrument is applicable to the total sediment in residual fuel oil and distillate fuel oil containing residual components.
| Standards | SH/T 0701 SH/T 0702 |
| Manufacturer | Shandong Shengtai Instrument Co., Ltd |
| Product model | SH0702 |
Product features
● Equipped with a special aging bath;
● Standard filter elements with heating and cooling coils;
● Glass fiber filter paper aperture 0.0016mm diameter 47mm;
● Stainless steel ball valve switches heat source and cold source;
● Digital display time relay controls working time;
● Microcomputer PID temperature controller, PT100 temperature sensor, high temperature control accuracy;
Technical parameter
| Standard | SH/T0701 SH/T0702 ASTM D4870 |
| Test sample | 25g |
| Waste flask capacity | 500ml |
| Measurement range | 0.5%(m/m) |
| Test unit | 2 |
| Filter paper aperture | 0.0016mm |
| Diameter of filter paper | 47mm |
| Vacuum pressure | 40kpa |
| Work power supply | AC220V 50HZ |
| Whole power | 1000W |
| Instrument size | 640*330*570mm |
| Instrument weight | 32kg |
| Package size | 725*410*630mm |
| Package weight | 47.8kg wooden crate |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Optional accessories:
1. Electronic balance (one ten thousandth)
2. Drying oven
3. Glass dryer (with silica gel desiccant)
4. Wash the bottle or syringe with a scale of 25ml
5. Mixing rod glass and glass beaker 30ml
6. High speed mixer 400r/min
7. Weighing bottle or dish
8. Glass fiber filter paper
Packing List
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Suction bottle | 1 | Piece | |
| 3 | Suction filter pump | 1 | Piece | |
| 4 | Power cord | 1 | Piece | |
| 5 | Instructions | 1 | Copy | |
| 6 | Packing list | 1 | Copy | |
| 7 | Certificate warranty card | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
