Quench Oil Cooling Performance Tester RT ～ 900 ℃ Silver Probe Automatic Lifting ISO 9550
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 加熱方法 | PID自己調整、自動調整 | 温度範囲 | 室温～900℃ |
|---|---|---|---|
| オーブンの穴の大きさ | Φ25×200mm以上 | プローブタイプ | シルバー探査機 |
| 中型容器 | 300ml | 梱包サイズ | 480*430*590mm |
| 消費電力 | 2000W | 動作電源 | AC220V±10％50Hz |
| ハイライト | oil cooling performance tester,automatic lifting lube oil tester,ISO 9550 oil testing equipment |
||
製品の説明

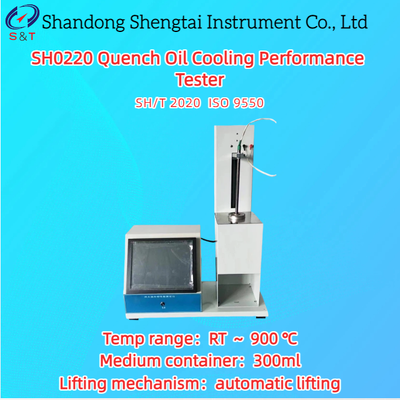

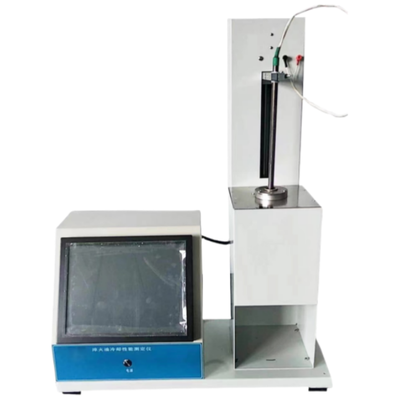

SH0220 Quench Oil Cooling Performance Tester
The SH0220 Quenching Oil Cooling Performance Tester is designed and manufactured strictly in accordance with the standard SH/T 0220 Heat Treatment Oil Cooling Performance Testing Method. It is used to test the maximum cooling rate and cooling time of the cooling performance of quenching oil and other heat treatment oils. It is suitable for testing the maximum cooling rate, temperature at which the maximum cooling rate is located, cooling rate at 300℃, cooling time to 600℃, cooling time to 400℃, and cooling time to 200℃ of water-based and oil-based cooling media under laboratory standard conditions.
Main technical specifications, parameters, and performance characteristics:
| Heating method | PID self-tuning, automatic adjustment |
| Temperature range | RT ～ 900 ℃ |
| Furnace cavity size | Greater than Φ 25 * 200mm |
| Probe type | Silver probe |
| Curve display | Curve display chart with temperature and time |
| Medium container | 300ml |
| Lifting mechanism | automatic lifting |
| Printing function | automatically print temperature time curve and cooling characteristics |
| Working power supply | AC220V ± 10% 50Hz |
| Power consumption | 2000W |
| Packaging size | 480 * 430 * 590mm |
| Weight | 35kg |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| Number | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Unit | |
| 2 | Silver probe | 1 | Piece | |
| 3 | Media container | 1 | Piece | |
| 4 | Power line | 1 | Strip | |
| 5 | Operation instructions | 1 | Copy | |
| 6 | Packing list | 1 | Copy | |
| 7 | Certificate of Conformity Warranty Card | 1 | Copy |
