Hydraulic Oil Filtration Tester 0 ～ 80℃ Timing 0 ～ 999h PT100 Sensor SH/T 0210
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 温度範囲 | 0～80℃ | 吸収モード | 真空ポンプ |
|---|---|---|---|
| 使用圧力 | 86658Pa | タイミング範囲 | 0 ¥ 999h |
| タイミングモード | デジタル表示装置のタイマー | 動作電源 | AC220V |
| 温度制御モード | デジタル表示装置PIDの温度調節器 | 加熱方法 | 電気加熱チューブ加熱 |
| ハイライト | hydraulic oil filtration tester with PT100 sensor,lube oil testing equipment with temperature control,oil filtration tester with timing function |
||
製品の説明

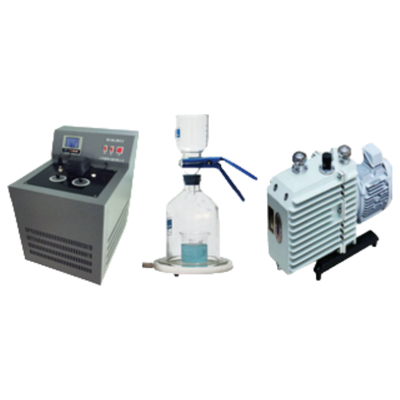

SH0210 Hydraulic oil filtration tester
SH0210 hydraulic oil filter test instrument is valuable in the evaluation of the filtration performance of hydraulic oil, all kinds of industrial hydraulic system and vehicle hydraulic system of hydraulic oil, because of the poor filtration performance of oil, caused by filter blockage is a serious problem. Especially when the hydraulic system is mixed with a small amount of water, the blocking of the hydraulic system filter is more serious, which causes the failure of hydraulic transmission, the wear and damage of the hydraulic pump and other components.
Filterability Of Hydraulic Oil Tester lubricant filterableness analyzer filtering performance instrument
Main features
● Fully enclosed imported compressor refrigeration, to ensure the supply of cold capacity;
● Special rotary vane vacuum pump, provide enough vacuum;
● Glass fittings meet the requirements of SH/T0210 standard;
● Digital display time, simple operation;
● Stainless steel constant temperature bath;
● Glass funnel with scale
● Precision pressure regulating valve, the pressure can be controlled within the range of 86658Pa
● Micro processing thermostat and PID control, digital display temperature, precision 0.1℃, PT100 RTD temperature probe;
● Operating temperature range: room temperature ~80°C;Safety measures to prevent overheating or low liquid levels
Technical parameters
| Standard | SH/T 0210 |
| Temp range | 0 ～ 80℃ |
| Absorption mode | vacuum pump |
| Working pressure | 86658Pa |
| Pressure regulation | Pressure regulating valve |
| Timing mode | Digital display timer |
| Timing range | 0 ～ 999h |
| Working power supply | AC220V |
| Temp control mode | Digital display PID temperature controller |
| Refrigeration mode | Compressor refrigeration |
| Heating method | electric heating tube heating |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only.If there are any updates to the instrument, they may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
