2 Work Unit Grease Drum Stability Tester 21～38℃ PT100 Sensor Digital Timer ASTM D1831
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 温度制御範囲 | 21°38°C | モーター速度 | 155~180r/min |
|---|---|---|---|
| 作業ユニット | 2 | 加熱モード | 電熱コイル |
| タイミング | デジタルタイマー | 機器のサイズ | 500×440×450mm |
| 電源 | AC220V 50HZ | 全力 | 1000W |
| ハイライト | grease drum stability tester ASTM D1831,lube oil testing equipment PT100 sensor,digital timer grease tester 21～38℃ |
||
製品の説明

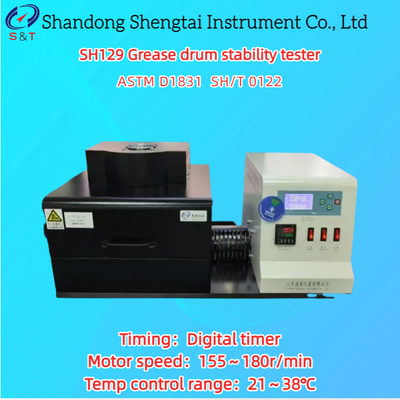

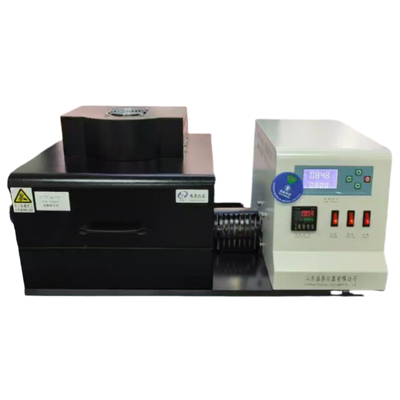

SH129 Grease drum stability tester
SH129 grease drum stability instrument is applicable to standard ASTM D1831 SH/T0122, the operation of the instrument: with a certain amount of samples, at room temperature, after working on the drum test machine for 2h, determine the work of grease before and after the test coning degree.
The instrument is suitable for measuring the consistency change of grease after working on the drum tester, and is used to judge the mechanical shearing stability of grease.
Performance characteristics:
● Stainless steel roller Φ 90 * 180 mm, 5kg
● The idling wheel has a positioning ring to control the normal operation of the drum;
● The lower part is equipped with a driving motor, so that the speed is maintained in 155 ~ 180r/min;
● Belt drive drum;
● Microcomputer temperature controller, digital display, precision ±5℃, PT100 sensor;
● Digital timer, record working time, with a buzzer alarm;
● Can test two rollers at the same time;
● The instrument box cover oil a thermometer hole, can be temperature correction;
Technical parameters
| Standard | ASTM D1831 SH/T 0122 |
| Heating mode | Electric heating coil |
| Timing | Digital timer |
| Temp control range | 21～38℃ |
| Motor speed | 155～180r/min |
| Work unit | 2 |
| Whole power | 1000W |
| Power supply | AC220V 50HZ |
| Instrument size | 500×440×450 mm |
| Instrument weight | About 30kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Roller | 2 | Piece | |
| 3 | Power cord | 1 | Piece | |
| 4 | Instruction | 1 | Copy | |
| 5 | Packing list | 1 | Copy | |
| 6 | Certificate warranty card | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
