2 Holes Automatic Crude Oil Condensation Point Tester -40 ～ 70℃ Accuracy 0.1℃ SY/T0541
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| テスト サンプルの数 | 2 | 冷蔵方法 | 圧縮機の冷凍 |
|---|---|---|---|
| 温度測定範囲 | -40 | 70℃ | 温度制御の精度 | 0.1℃ |
| 機器のサイズ | 510*485 550mm | 楽器の重量 | 50.45kg |
| プリンター | マイクロプリンター | 全力 | 2000Wよりもっと |
| ハイライト | automatic crude oil tester with warranty,2 holes oil condensation point tester,lube oil testing equipment SY/T0541 |
||
製品の説明

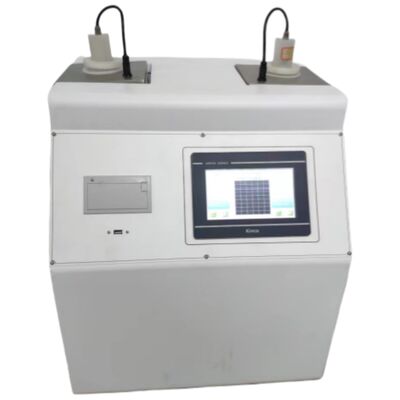

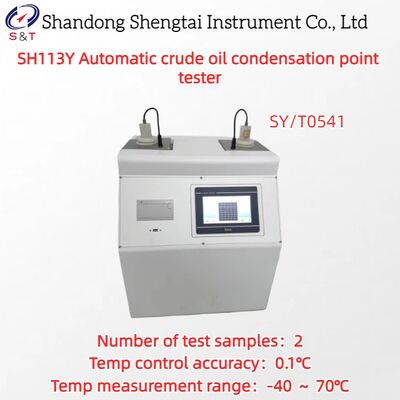

SH113Y Automatic crude oil condensation point tester
SH113Y automatic crude oil condensation point tester is designed and manufactured based on SY/T0541 crude oil condensation point measurement method. It adopts modern advanced technology and integrates mechanical, optical, electronic and computer technologies. It can automatically test the condensation point of petroleum products. This instrument uses photoelectric detection technology, automatic tilt method of glass tube, and imported compressor refrigeration system to ensure that the required refrigeration depth is reached.
Technical performance
● Large color LCD screen display, full Chinese human-computer dialogue interface, no logo keyboard,
● Simulate and trace the function curve of temperature and test time.
★ Remote upgrade: With TCP network transmission function, software remote upgrade can be performed later (optional)
★ Data sharing: can be accessed into the LIMS system of the group company (optional)
Instrument features
| Display method | Large color LCD screen |
| Standard | SY /T 0541 |
| Temp measurement range | -40 ～ 70℃ |
| Cold bath temp range | -40℃ ～ RT |
| Sample measurement range | -25℃ ～ RT |
| Temp control accuracy | 0.1℃ |
| Number of test samples | 2 |
| Number of bath holes | Dual temp dual bath |
| Refrigeration method | compressor refrigeration |
| Detection method | photoelectric sensor detection |
| Tilting method | glass test tube automatically tilts |
| Result output | USB |
| Printer | Micro printer |
| Whole power | No more than 2000W |
| Power supply | AC220V±10% 50Hz |
| Instrument size | 510*485 550mm |
| Instrument weight | 50.45kg |
| Package size | 580*550*590mm |
| Package weight | 60kg wooden crate |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be alight changes without prior notice.
Automatic condensation point tester packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Main engine | 1 | Unit | |
| 2 | Solidification glass tube | 2 | Piece | |
| 3 | condensation point sensor | 2 | Piece | |
| 4 | Power line | 1 | Root | |
| 5 | Fuse | 1 | Piece | |
| 6 | Operating instruction | 1 | Copy | |
| 7 | Packing list | 1 | Copy | |
| 8 | Certificate warranty card | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
