2 Holes Metal Bath Petroleum Solidifying Point Tester -70℃ ～ RT LCD Display ASTM D97
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| テストサンプル | 2セット | 画面 | LCD 表示例 |
|---|---|---|---|
| 加熱方法 | メタルバス | 温度制御範囲 | -70℃～室温 |
| 温度制御の精度 | ±0.5℃ | パッケージサイズ | 890*530*480mm |
| 環境の臨時雇用者 | ≤30℃ | 相対湿度 | ≤85％ |
| ハイライト | metal bath petroleum solidifying point tester,LCD display ASTM D97 tester,lube oil testing equipment -70℃ |
||
製品の説明

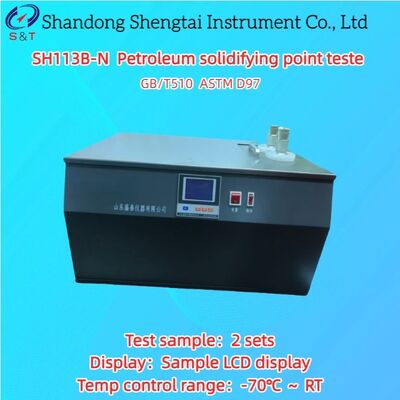

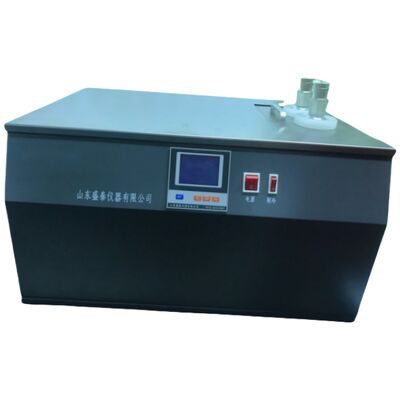

SH113B-N Petroleum solidifying point tester metal bath
SH113B-N Petroleum solidifying point Tester Condensation Point Tester (Metal Bath) is designed and manufactured in accordance with the requirements of the People's Republic of China standard GB/T510 "Petroleum Condensation Point Determination Method", and is suitable for determining the condensation point of petroleum products in accordance with the methods specified in the above standards.
The condensation point is the highest temperature of an oil product under specified test conditions when the test oil is loaded into a test tube and cooled to a level that does not move, expressed in degrees Celsius.
| Manufacturer | Shandong Shengtai Instrument Co., Ltd |
| Project test | Determination of the coagulation point of petroleum products and chemical products |
| Standard | GB/T510 ASTM D97 |
| Parameter | Temp control range: -70℃ ～ RT, compression refrigeration, 2 groups of tests at the same time |
Main technical characteristics
● Using a compressor for refrigeration, two sets of tests can be conducted simultaneously.
● The output mode is small LCD display, with good temperature control stability.
● The main machine is heated in a metal bath, without the need to replace the medium alcohol, and the temperature drops quickly.
● Imported cascade compressor
Main technical parameters
| Refrigeration system | New type of refrigeration compressor (dual compressor) |
| Test sample | 2 sets |
| Display | Sample LCD display |
| Heating method | Metal bath |
| Temp control range | -70℃ ～ RT |
| Cold method temp control | -70℃ ～ RT |
| Sample measurement range | -55℃ ～ RT |
| Temp control accuracy | ±0.5℃ |
| Power | ＜1500W |
| Package size | 890*530*480mm |
| Package weight | 75kg |
| Environment temp | ≤ 30℃ |
| Relative humidity | ≤ 85% |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Details of petroleum product freezing point tester
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Solidifying point glass tube | 2 | Set | Including inner tube and outer tube |
| 3 | Solidifying point thermometer | 2 | Piece | |
| 4 | Power cord | 1 | Piece | |
| 5 | Fuse tube | 1 | Piece | |
| 6 | Instruction manual | 1 | Copy | |
| 7 | Packing list | 1 | Copy | |
| 8 | Certificate warranty card | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
