Gear Oil Groove Point Tester RT - 70℃ Metal Bath LCD Display ± 0.5 ℃ FTMS791B3456.1
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 温度制御範囲 | 室温～70℃ | 温度制御の精度 | ±0.5℃ |
|---|---|---|---|
| 実験用の穴 | 単一スロット単一穴 | 出力モード | 液晶ディスプレイ |
| パッケージングサイズ | <1500W | 動作電源 | AC220V±10％50Hz |
| ハイライト | Gear oil tester LCD display,Metal bath lube oil tester,Precision oil groove point tester |
||
製品の説明

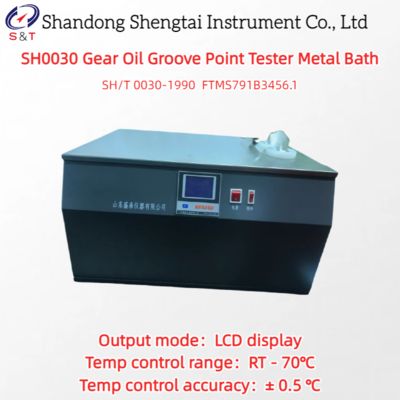

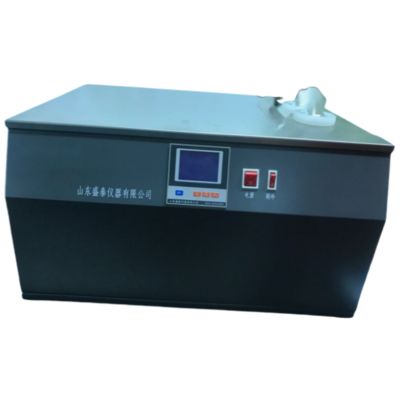

SH0030 Gear Oil Groove Point Tester (Metal Bath)
The SH0030 gear oil grooving point measuring instrument is designed and manufactured in accordance with the requirements of the standard SH/T 0030-1990 "Determination Method for Groove Points of Vehicle Gear Oil" and FTMS791B3456.1, suitable for measuring the groove points of gear oil according to the methods specified in the above standards.
Standard: SH/T 0030-1990 FTMS791B3456.1
Technical specifications:
| Refrigeration method | Dual compressors refrigeration |
| Output mode | LCD display |
| Refrigeration medium | Metal bath |
| Working power supply | AC220V ± 10% 50Hz |
| Temp control range | RT - 70℃ |
| Groove forming steel sheet size | 152.4 * 191 * 3.2mm |
| Material quality | stainless steel |
| Experimental holes | Single slot single hole |
| Temp control accuracy | ± 0.5 ℃ |
| Environmental temp | ≤ 30 ℃ |
| Relative humidity | ≤ 85% |
| Power consumption | ＜1500W |
| Packaging size | 890 * 530 * 480mm |
| Weight | 75kg |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| Number | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Unit | |
| 2 | Test container for trenching point | 1 | Piece | built-in |
| 3 | Thermometer | 1 | Piece | |
| 4 | Steel sheet for trenching | 1 | Piece | |
| 5 | Power line | 1 | Strip | |
| 6 | Fuse tube | 1 | Piece | |
| 7 | Operation instructions | 1 | Copy | |
| 8 | Packing list | 1 | Copy | |
| 9 | Certificate of Conformity Warranty Card | 1 | Copy |
