Manual Crude Oil Duplex Moisture Meter Distillation Method 1000ml ASTM D4006
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 水受容器 | 5ml、最小目盛0.05ml | コンデンサー | 400±5mm |
|---|---|---|---|
| 蒸留コラス | 1000ml | 温度制御方法 | 電子ソリッドステート電圧レギュレータ |
| 全力 | ＜1100W | 入力電力 | AC220V 50Hz±10% |
| ハイライト | Manual crude oil moisture meter,Duplex moisture meter ASTM D4006,1000ml oil distillation tester |
||
製品の説明

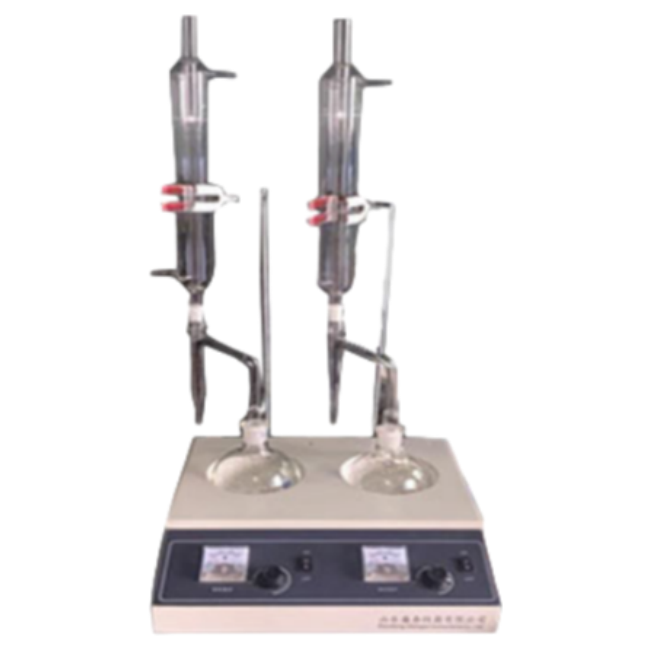

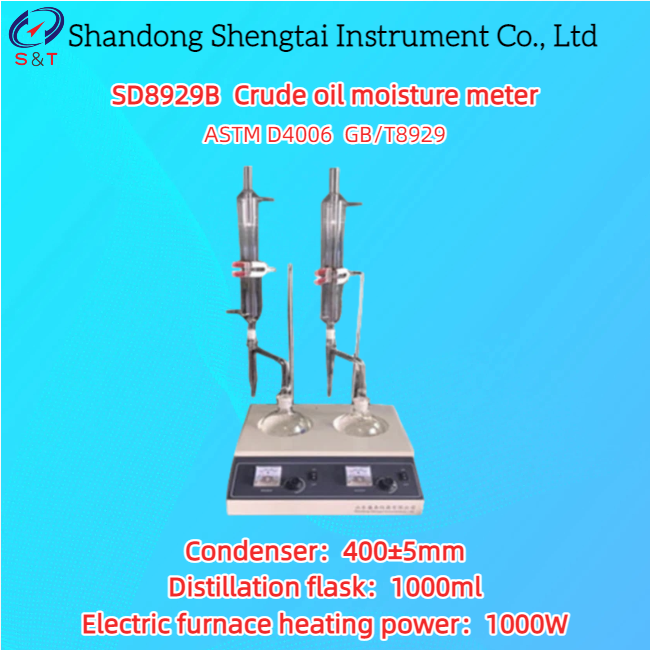

SD8929B Crude oil moisture meter
SD8929B Crude oil moisture meter is designed and manufactured in accordance with the requirements of the People's Republic of China standard GB/T 8929-2006 "Determination of water content in crude oil". It is suitable for the determination of water content in crude oil according to the method (distillation method) specified in GB/T 8929.
Standard: ASTM D4006 GB/T8929
Main technical features
● The design of the instrument fully conforms to the requirements of GB/T 8929 standard.
● The test vessel holder design is reasonable, the condensation pipe installation, disassembly is convenient.
● The design of distillation flask, water receiver and condenser conforms to the requirements of GB/T 8929-2006 standard.
● The instrument is equipped with pointed small tools, scrapers, sprayers, fully meet the requirements of GB/T 8929-2006 standard.
Main technical parameters and indicators
| Input power | AC220V 50Hz±10% |
| Electric furnace heating power | 1000W |
| Distillation flask | 1000ml |
| Water receiver | 5ml, Minimum scale of 0.05 ml |
| Condenser | 400±5mm |
| Environment temp | ≤ 35℃ |
| Relative humidity | ≤ 85% |
| Whole power | ＜1100W |
| Temp control method | Electronic solid-state voltage regulator |
| Instrument size | 430*350*1100mm Containing vessels |
| Instrument weight | 10kg |
Note: The appearance pictures, dimensions, volume and weight of instrument are for reference only. If there are any up dates to the instrument, they may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Host | Unit | 1 | |
| 2 | Condenser tube | Piece | 2 | |
| 3 | Receiver | Piece | 2 | |
| 4 | Round bottom flask | Piece | 2 | |
| 5 | Column | Pair | 2 | |
| 6 | Condensation pipe gripper | Pair | 2 | |
| 7 | Instruction manual | Copy | 1 | |
| 8 | Certificate warranty card | Copy | 1 |
