x商品の詳細
| 火力 | 0〜600W | 臨時雇用者制御 | 室温～400℃ |
|---|---|---|---|
| スクラッチ装置 | 自動スキャン | パッケージサイズ | 380*290*260mm |
| 重さ | 10kg | 電源 | AC220±10%V 50Hz |
| ハイライト | semi-automatic flash point tester,open flash point tester ASTM D92,COC method flash point tester |
||
製品の説明

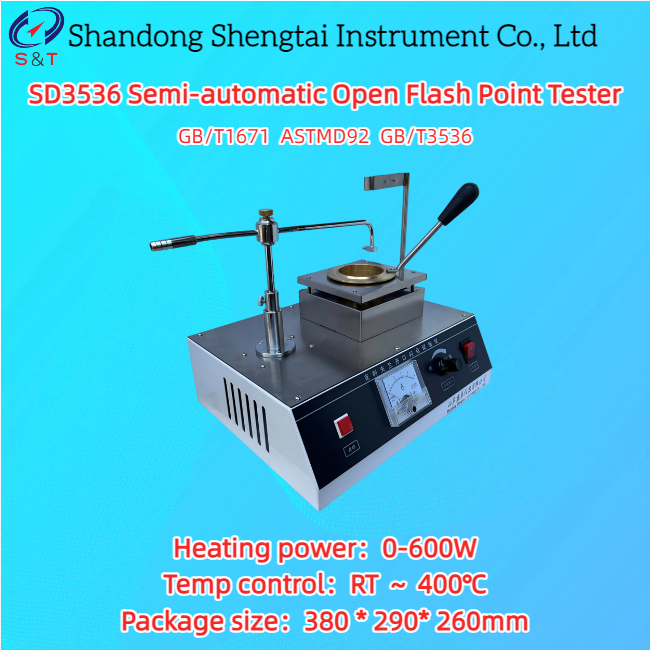

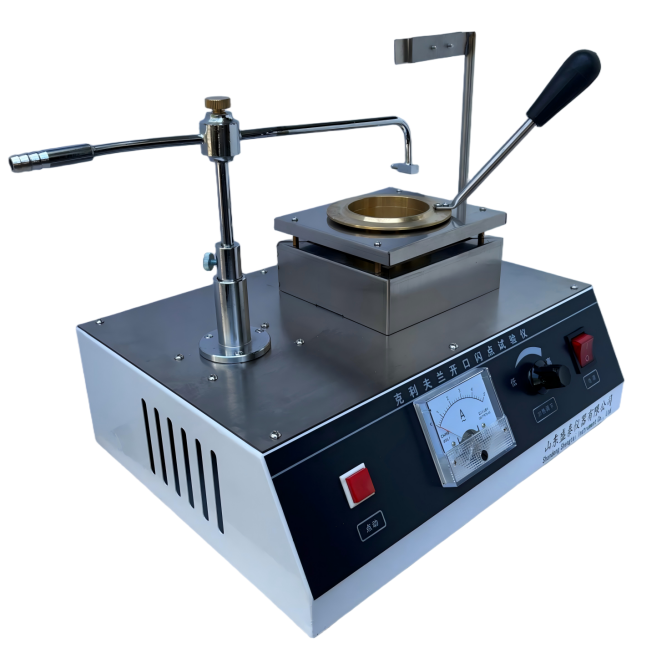

SD3536 Semi-automatic Open Flash Point Tester
SD3536 semi-automatic open flash point meter is designed and manufactured in accordance with the requirements specified in the People's Republic of China standard GB/T3536-2008 "Petroleum Products - Determination of Flash Point and Ignition Point - Cleveland Open Cup Method". It is suitable for measuring the flash point and ignition point of petroleum products except fuel oil and open flash point not less than 79℃, and also supports the determination of GB/T1671-2008 plasticizer flash point.
The open flash point is applicable to the determination of the flash point and ignition point of petroleum products except fuel oil and petroleum products with an open flash point not lower than 79℃
Standard: GB/T1671-2008 ASTM D92 GB/T3536-2008
Main technical parameters and indexes
| Power supply | AC220±10%V 50Hz |
| Heating device | electric furnace heating, no flame, explosion-proof |
| Heating power | 0-600W |
| Scratching device | Automatic scanning |
| Temp control | RT ～ 400℃ |
| Grading | 2℃, comply with GB/T514 |
| Ignition device |
(1) Ignition source: gas (or other civil combustible gas, the same below); (2) Nozzle aperture: 0.6 ～ 0.8 mm. |
| Ambient temp | -10 ～ 50ºC |
| Relative humidity | ≤85% |
| Maximum power consumption | 650W |
| Package size | 380 * 290 * 260mm |
| Weight | 10kg |
Remind: Customers need to provide their own: air source and air source required pressure reducing valve
Note: The appearance pictures, dimensions, volume and weight of the device are for reference only. If there are any updates to the device, they may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| Number | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Unit | |
| 2 | Oil cup | 1 | Piece | |
| 3 | Igniter | 1 | Set | |
| 4 |
Thermometer ( RT ～300℃, Grading 2℃ ) |
1 | Piece | |
| 5 | Thermometer rack | 1 | Set | |
| 6 | Power cord | 1 | Root | |
| 7 | Fuse (5A) | 1 | Piece | |
| 8 | Connecting hoses | 1 | Piece | |
| 9 | Certificate of Conformity for Instruction Manual | 1 | Copy |
