Constant Temp Needle Penetration Tester Measure 0 - 70mm Temp 10 ~ 50℃ ASTM D217

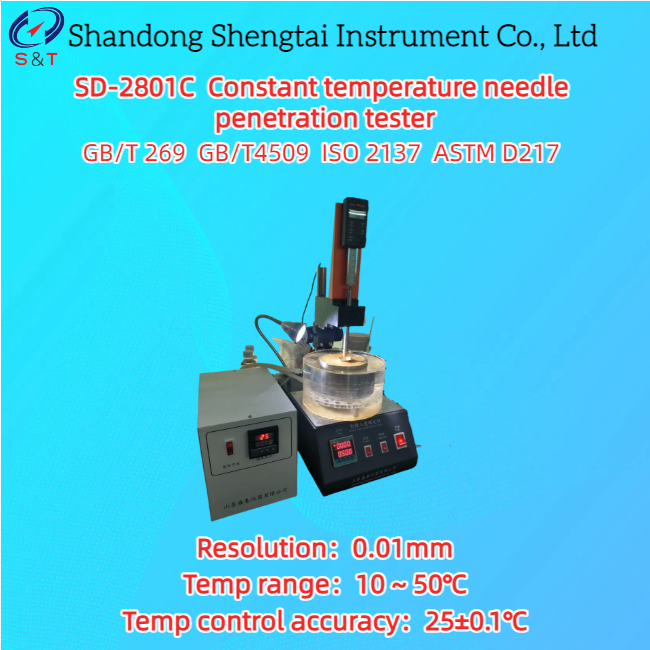

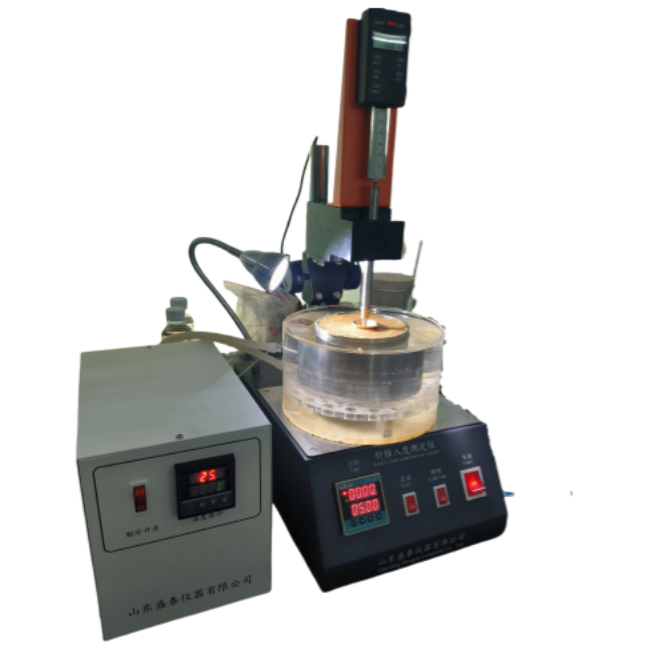

SD-2801C Constant temperature needle penetration tester

SD2801C constant temperature needle penetration meter is designed and manufactured according to the technical requirements and related regulations of GB/T269 "Determination of the cone penetration of grease and petroleum grease" and GB/T4509 standard of the People's Republic of China. It is mainly used for testing the needle penetration of asphalt and lubricating grease (or petroleum grease).

The instrument can also be used for solid fine grain, powder, colloid, frozen materials, as well as cheese, sugar gum, butter, cream, fermented materials and other food raw materials inspection, in food industry, traffic and highway engineering and other industrial departments can be widely used.

Cone penetration refers to the depth at which a standard conical body (usually carrying a total load of 150 grams, but there are also regulations for 100 grams) sinks into a lubricating grease sample insulated at 25 ℃ within 5s. The unit is 1/10 millimeter. The greater the penetration, the softer the lubricating grease, that is, the lower the viscosity; On the contrary, it indicates that the harder the lubricating grease is, the greater its viscosity. The penetration measurement of asphalt does not use a standard cone but a standard pointed needle with a load capacity of 100 grams.

Compliant standards:

● JT/T 617.2-2018 Dangerous Goods Road Transport Rules

● ISO 2137-2007 Petroleum products and lubricants

● YY0717-2009 Dental Root Canal Sealing Materials

● GJB 785.3-89 "Test Methods for Performance of Unvulcanized Rubber Sealants - Penetration and Cone Penetration Tests"

● GB/T22459.1-2008 "Refractory Slurry Part 1: Consistency Test Method (Cone Penetration Method)"

Main technical features

● The use of digital display to display the taper value, intuitive and eye-grabbing.

● With lifting frame coarse adjustment, fine adjustment function, easy adjustment, accurate needle.

● Equipped with heating constant temperature bath, water bath temperature automatic control, high cost performance instrument.

● Experimental time can be set arbitrarily

● The needle rod assembly can be adjusted up and down within 0-70mm by adjusting the knob

● Time control device: The time can be arbitrarily set according to one's own requirements, with a time error of less than ±0.1s.

● Others: equipped with cold light source, easy to use and operation.

Main technical parameters and indicators

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
