Reduced Pressure Distillation Tester PT100 Sensor Extraction 14.4L/h ASTM D86
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 蒸留フラスコの暖房の炉力 | 0-1000W連続調整可能 | 測定シリンダーの空気浴のための温度制御ポイント | 室温は100°C 連続調整可能 |
|---|---|---|---|
| センサー | Pt100プラチナ抵抗器 | 温度制御の精度 | セットテンプ ± 1 °C |
| 動作電源 | AC220V 50Hz | 火力 | 連続調節可能 |
| ハイライト | PT100 sensor lube oil tester,ASTM D86 distillation tester,14.4L/h reduced pressure extractor |
||
製品の説明

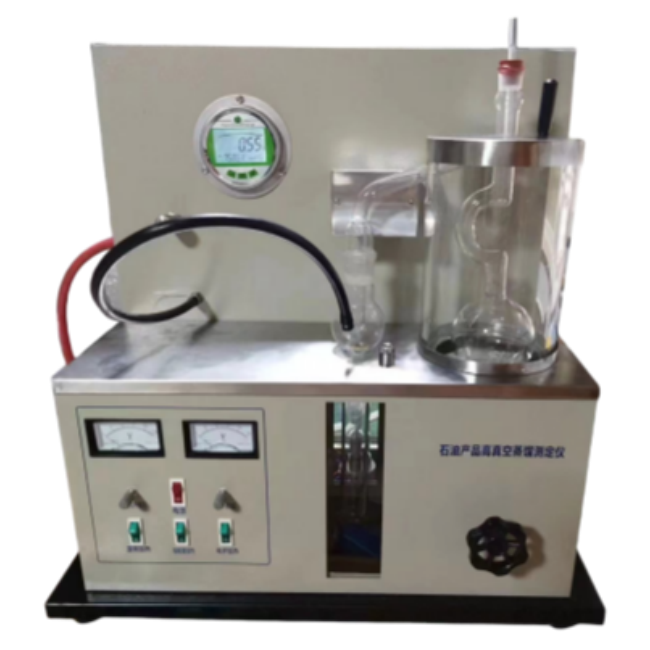

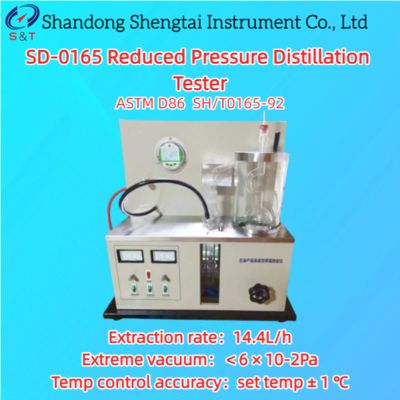

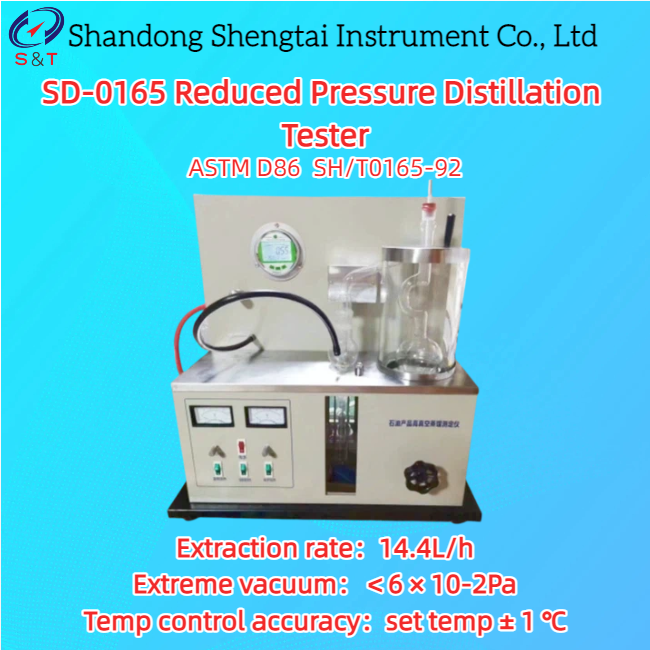

SD-0165 Reduced Pressure Distillation Tester
The SD-0165 Reduced Pressure Distillation Tester is designed and manufactured according to the requirements of the industry standard SH/T0165-92 "High Boiling Point Range Petroleum Product High Vacuum Distillation Determination Method" of the People's Republic of China. It is suitable for determining the distillation range of high boiling point range petroleum products such as wax oil and lubricating oil.
Reduced pressure distillation range: The temperature range in which petroleum products are evaporated under specified conditions, represented by their initial boiling point and final boiling point (converted to atmospheric pressure).
Standard: ASTM D86 SH/T0165-92
Technical parameters and characteristics
| Heating power | Distillation flask heater | 1000W | |||
| Receiver cylinder heater | 350W | ||||
| Distillation flask heating furnace power | 0-1000W continuously adjustable | ||||
| Temp control point for the air bath of the measuring cylinder | Room temp～100 ℃ continuously adjustable | ||||
| Sensor | Pt100 platinum resistor | ||||
| Air bath temperature control method | digital temp control meter for automatic temp control | ||||
| Temp control accuracy | set temp ± 1 ℃ | ||||
| Extraction rate | 14.4L/h | ||||
| Extreme vacuum | ＜6 × 10-2Pa | ||||
| Heating power | continuously adjustable | ||||
| Working power supply | AC220V 50Hz | ||||
|
Working conditions |
Environmental temp | 5～35℃ | |||
| Relative humidity | <85% | ||||
| Dimensions | 700 × 520 × 520mm (L × W × H) | ||||
| Net weight of the instrument | 59kg | ||||
● Structural design: A desktop structure consisting of a distillation testing section and a vacuum and pressure reducing section,
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Packing list
| NO. | Name | Specifications | Quantity | Note |
| 1 | Host | 1 unit | ||
| 2 | Thermometer (rod type) | 0～360℃ | 1 piece | |
| 3 | Distillation flask | 1 piece | ||
| 4 | Receiver measuring cylinder | 1 piece | ||
| 5 | Vacuum pump | 1 piece | ||
| 6 | Seal pad | 1 piece | ||
| 7 | Fuse tube | Φ5×20 10A | 2 pieces | |
| 8 | Oil-resistant rubber hose | Inner diameter Φ8 | 0.5m | |
| 9 | Instructions | 1 copy | ||
| 10 | Certificate of conformity Warranty Card | 1 copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
