Pesticide Boiling Point Meter RT - 300℃ Digital Tube Diaplay 15kg NY/T 1860.19
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 全力 | 1100Wより多く | 加熱範囲 | 室温～300℃ |
|---|---|---|---|
| 機器のサイズ | 320*290*360mm | 楽器の重量 | 15kg |
| 環境温度 | ≤ 35の℃ | 電源 | AC 220V ± 10% 50Hz |
| ハイライト | digital pesticide boiling point meter,RT-300℃ boiling point tester,NY/T 1860.19 compliant pesticide analyzer |
||
製品の説明

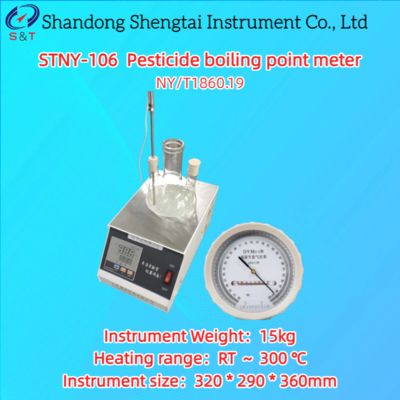

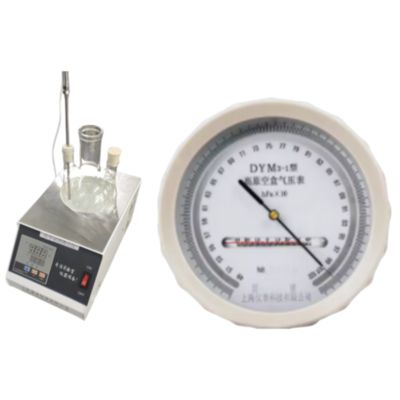

STNY-106 Pesticide boiling point meter
The STNY-106 pesticide boiling point meter is designed and manufactured strictly in accordance with the testing guidelines for the physical and chemical properties of pesticides in NY/T1860.19, Part 19: Boiling point determination method. It uses a digital tube display and a single-chip microcomputer digital precision pressure regulating electric heater. Due to the use of precision digital pressure regulation, the electric heater has the characteristics of fine pressure regulation, stable heating, and stable temperature rise.
Boiling point: The principle of this method is that as the temperature of the liquid rises, its vapor pressure also increases. When the vapor pressure of the liquid is equal to atmospheric pressure, boiling begins. Under standard conditions (1013.25 hPa, 0℃), the boiling temperature of the liquid is the boiling point of the liquid.
Technical parameters:
| Power supply | AC 220V ± 10% 50HZ |
| Electric furnace heating power | 1000W |
| Environmental temp | ≤ 35 ℃ |
| Relative humidity | ≤ 85% |
| Whole power | not more than 1100W |
| Heating range | RT ～ 300 ℃ |
| Instrument size | 320 * 290 * 360mm |
| Instrument Weight | 15kg |
| Packaging size | 450 × 390 × 420mm |
| Packaging Weight | 18kg |
| Customer provided | Atmospheric pressure gauge |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Packing list
| Number | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Unit | |
| 2 | Customized special Three-neck flask | 1 | Piece | |
| 3 | Thermometer | 2 | Piece | |
| 4 | Power cord | 1 | Root | |
| 5 | Instrument manual | 1 | Copy | |
| 6 | Packing list | 1 | Copy | |
| 7 | Certificate Warranty Card | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
