x商品の詳細
| ふるいの直径 | φ200mm | ノイズ | ≤50dB |
|---|---|---|---|
| 給餌量（1回） | ≤1キロ | 外部寸法 | 360×300×736mm |
| 全体的な品質 | 25kg | 広さ | ≤5mm |
| ハイライト | electric inspection sieve 1420r/min,standard electric sieve GB T 22427.5,food testing sieve amplitude ≤5mm |
||
製品の説明

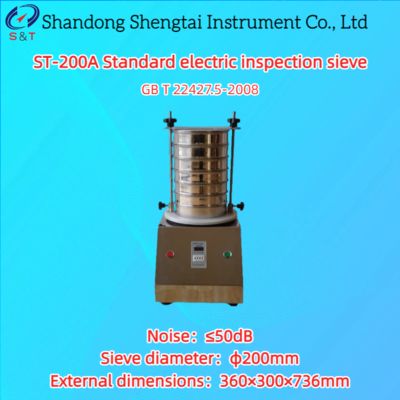

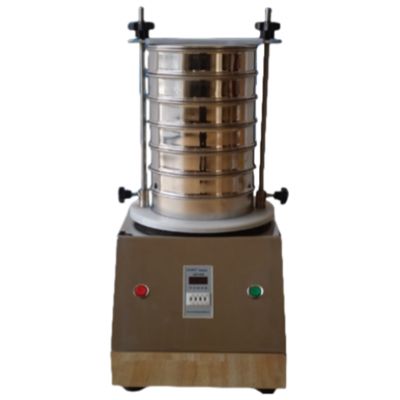

ST-200A Standard electric inspection sieve
Basic function:
ST-200A standard electric inspection sieve is a standard analytical sieve that integrates powder particle grading and powder filtration; Suitable for precise analysis of particle size structure in laboratories and quality control rooms, as well as testing and analysis of solid content and impurities in liquids. It has the characteristics of low noise, high efficiency, and high accuracy. Standard sieve body ensures high accuracy in sample analysis; Electronic delay device can set the same screening time for the same material as needed to ensure the uniformity of sample analysis data, minimize inspection errors, and make accurate judgments on product quality.
GB T 22427.5-2008 Determination of Starch Fineness
Technical parameter table:
| Number | Name | Date | Unit | |
| 1 | Standard sieve body | Customers can choose or customize it themselves | Storey | |
| 2 | Sieve diameter | φ200 | mm | |
| 3 | Noise | ≤50 | dB | |
| 4 | Feeding quantity (one-time) | ≤1 | Kg | |
| 5 | Amplitude | ≤5 | mm | |
| 6 | Electric machinery | Voltage | 220 | V |
| Speed | 1420 | r/min | ||
| Power | 0.125 | KW | ||
| 7 | External dimensions | 360×300×736 | mm | |
| 8 | Overall quality | 25 | Kg | |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing List
| Number | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Unit | |
| 2 | Sieve | 2 | Piece | |
| 3 | Bottom cover | 1 | Piece | |
| 4 | Power line | 1 | Strip | |
| 5 | Operation instructions | 1 | Copy | |
| 6 | Packing list | 1 | Copy | |
| 7 | Certificate of conformity | 1 | Copy |
