3 Layers Electronic Sieve Shaker Wheat Corn Grains Rotation Speed 120r/Min GB5494
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 最大スクリーニング容量 | 500g | 上映枠の層数 | 3層 |
|---|---|---|---|
| スクリーニング振幅 | 100mm | 回転速度 | 120r/min |
| モーターパワー | 60W | 作業電圧 | AC220V |
| ハイライト | 3 layer electronic sieve shaker,wheat corn grain sieve shaker,GB5494 compliant sieve shaker |
||
製品の説明

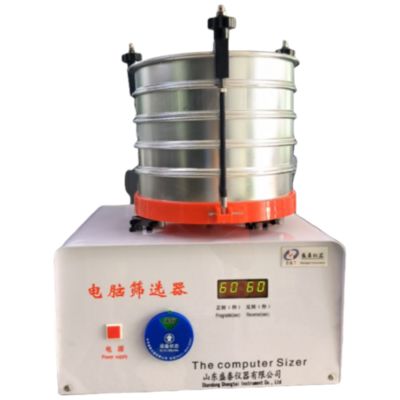

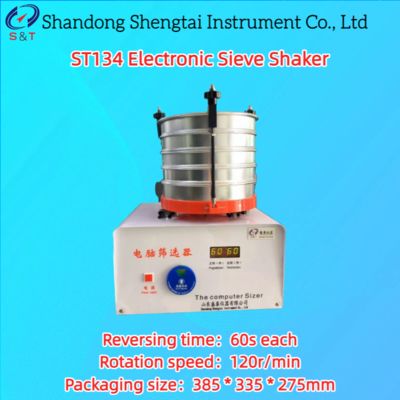

ST134 Electronic Sieve Shaker Electronic Sieving apparatus
ST134 electric filter is a specialized equipment developed according to the national standard GB5494-2019 "Inspection of Impurities and Imperfect Grains in Grain and Oil". It is a semi-automatic mechanical screen that adopts a desktop structure, a worm gear for variable speed transmission, and a three-point plane support for the screen body. It rotates in a plane through an eccentric connecting rod, and has the advantages of compact structure, smooth operation, stable performance, and easy operation. It is widely used for screening and determining grain oils and fats.
Technical specifications:
| Maximum screening capacity | 500g |
| Number of screening frame layers | 3 layers |
| Screening amplitude | 100mm |
| Rotation speed | 120r/min |
| Reversing time | 60s each |
| Supporting sieve grid outer diameter | 220mm |
| Motor power | 60W |
| Working voltage | AC220V |
| Packaging size | 385 * 335 * 275mm |
| Weight | 10.86kg (cardboard box) |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Grain screening is a testing instrument used to check the impurity content of granular grains and oilseed samples, as well as the content of rice bran powder, in order to determine their quality grade.
Pest screening is a specialized instrument used to test the pest density and pest grade standards of granular grain and oil samples.
Technical Specifications
| Grain Screening | Pest screening | |
| Outer diameter | Φ220mm | Φ300mm |
| Height | 50mm | 30mm |
| Aperture (mm) | Φ1.0 , 1.2 , 1.5 , 2.0 , 2.5 , 3.0 , 3.5 , 4.0 , 4.5 , 5.0 , 12,1.5×20 | Φ1.5 , 2.5 |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of spare parts and lifelong maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
