Automatic Smoke Point Tester RT ～ 400℃ PT100 Temp Sensor GB/T20795-2006
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| タッチスクリーンディスプレイ | 7インチのタッチスクリーンディスプレイ | 加熱方法 | 金属バス加熱 |
|---|---|---|---|
| 温度測定範囲 | 室温～400℃ | 正確さ | 0.1℃ |
| 環境温度 | 10~40℃ | 加熱速度 | GB/T20759と対応しなさい |
| ストレージ方法 | 実験結果は、簡単なクエリのために1000セットの履歴データを保存できます | 結果出力 | Uディスク出力機能も搭載、PC端末に出力して長期保存可能 |
| ハイライト | automatic smoke point tester,smoke point tester with PT100 sensor,food testing instrument with GB/T20795-2006 |
||
製品の説明

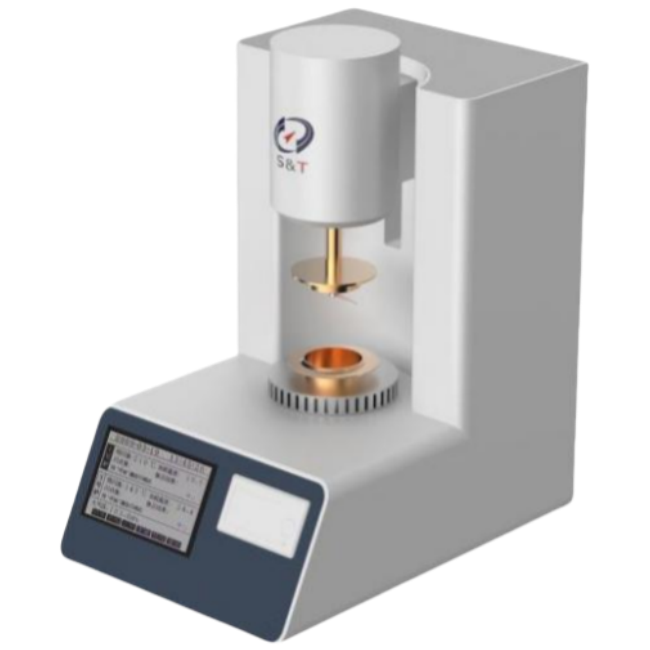

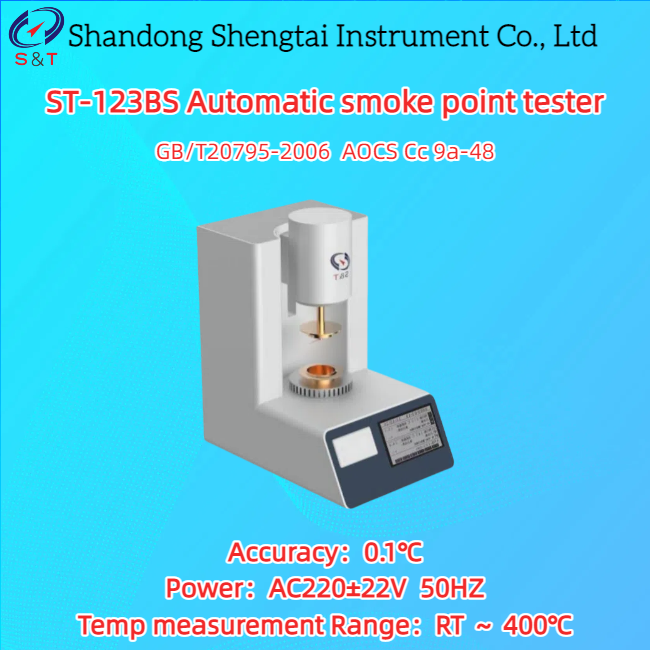

ST-123BS Automatic smoke point tester
ST-123BS Automatic smoke point tester is based on the national standards GB/T20795-2006 " vegetable oil smoking point tester Determination" and AOCS Cc 9a-48 .This instrument adopts LCD screen to display .It can preset smoke point temperature and sample mark number. It has menu that can prompt and guide. It adopts simulation tracking to display the function curve of temperature rising and test time It has the functions of English operation prompt,test date,test time and other parameters. This instrument can automatically detect the smoke point and print test data.The test arm automatically rise up and lower down. Widely used in quality control, import and export inspection, plant oil processing, plant oil storage and transportation, food processing, scientific research, agricultural breeding, the school ,plant oil smoking point testing department and so on.
Edible oil smoke point tester vegetable oil smoking point tester
Automatic Determination
Instrument features:
| Touch screen display | 7-inch touch screen display |
| Heating method | metal bath heating |
| Detection method | Camera photoelectric principle |
| Temp sensor | imported PT100 temp sensor |
| Standard micro-printer automatic measurement automatic thermal printing | |
Major technical parameter:
| Power | AC220±22V 50HZ |
| Temp measurement Range | RT ～ 400℃ |
| Accuracy | 0.1℃ |
| Heating rate | correspond with GB/T20759 |
| Storage method | the experimental results can store 1000sets of historical data for easy query |
| Results output | also equipped with U disk output function, output to PC terminal for long-term storage |
| Output format | The resulting U disk output format is CSV or excel. |
| Data extension | laser printer interface, can link HP1108 laser printer (optional). |
| Data protection | with the date password setting function. |
| Standard printing | a standard micro-printer for automatic measurement and automatic thermal printing |
| Remote upgrade | with TCP network transmission function, can be the software remote upgrade late |
| Ambient temp | 10～40℃ |
| Relative humidity | ≤80% |
| Total power consumption | ≤500W |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
