Automatic Sugar Cube Hardness Tester 0-50MPa Stroke 1~70mm 55KG GB/T 35888
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 測定範囲 | 0-50MPA | インジケータエラー | ±1％ |
|---|---|---|---|
| 指標の変動性 | <1％ | 解決 | 0.1N |
| 作業ストローク | 1～70mm | 機器のサイズ | 530*350*580mm (長さ*幅*高さ) |
| 画面 | マンマシンインターフェース中国語と英語メニューLCD | ストレージ機能 | マイコンにデータを保存でき、データを出力するためのUSBフラッシュディスクが装備されています |
| ハイライト | Automatic sugar cube hardness tester,Sugar cube tester 0-50MPa,Food testing instrument with warranty |
||
製品の説明

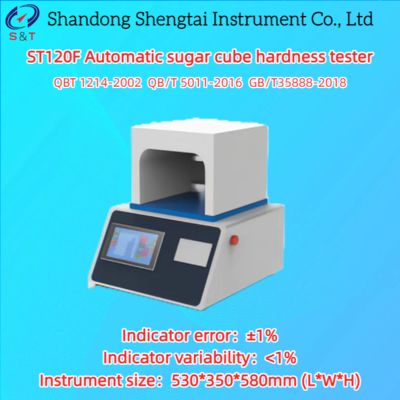

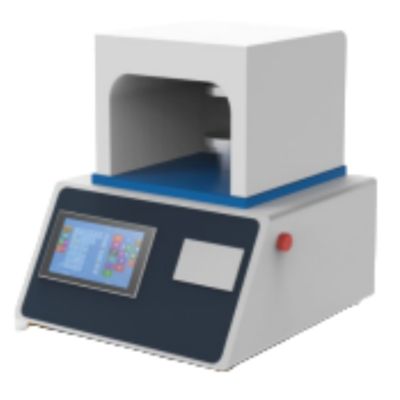

ST120F Automatic sugar cube hardness tester
ST120F Automatic sugar cube hardness tester is our company according to the standard QB/T 1214-2002 sugar cube and QB/T 5011-2016 sugar cube test method GB/T35888-2018 sugar cube regulation research and development using modern mechanical design concept and microcomputer processing technology for careful and reasonable design of a new type of high-precision intelligent tester, the use of advanced components, supporting components, single-chip microcomputer, reasonable structure and multi-functional design, configuration of liquid crystal Chinese display, It has various parameter testing, conversion, adjustment, display, memory, printing and other functions included in the standard.
Product features:
1. Modern design concept of mechatronics, compact structure, beautiful appearance, convenient maintenance;
2. The instrument adopts the upper pressure plate fixed type, high-precision load cell to ensure the rapidity and accuracy of the instrument force value data collection; High measurement accuracy.
3. Using high-speed ARM processor, high degree of automation, fast data collection, automatic measurement, intelligent judgment function, safe and reliable with powerful data processing function, can directly obtain the statistical results of various data, and can automatically reset, easy to operate, easy to adjust, stable performance.
4. It can display the curve of pressure and deformation, and display information such as pressure resistance and deformation in real time;
5. Modular integrated thermal printer, fast printing speed and convenient paper change;
Product parameters:
| Measurement range | 0-50MPa |
| Indicator error | ±1% |
| Indicator variability | <1% |
| Resolution | 0.1N |
| Working stroke | 1~70mm |
| Round clamping plate diameter | 60 mm |
| Working environment |
Temp 20±10℃ Relative humidity < 85% |
| Instrument size | 530*350*580mm (L*W*H) |
| Instrument weight | 55KG |
| Result output | Equipped with U disk output function, which can be output to PC for long-term storage |
| Output format | The output format of USB flash disk is in the form of CSV or excel |
| Data analysis function | Real-time display function of compression curve, data analysis management, storage, printing and other functions |
| Storage function | It can store data on microcomputer and be equipped with USB flash disk to output data |
| Display | Man-machine interface Chinese and English menu LCD |
| Print output modular integrated thermal printer | |
Note: The appearance picture and size, volume and weight of the instrument are for reference only. If the instrument is updated, it may be slightly changed without further notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The instrument materials provided shall be brand new, in line with national quality standards and goods with manufacturer's certificate of conformity;
----The materials and main components provided comply with the technical requirements specified in the technical data;
----The warranty period of the whole equipment is one year (excluding normal wear of wearing parts).
----In case of any instrument quality problem within the warranty period, we shall be responsible for free maintenance. If the equipment fails due to the user's responsibility, we shall be responsible for the repair and reasonable charge.
----The equipment lifetime preferential supply spare parts, complete machine lifetime maintenance repair.
----After expiration of the warranty period, if the user needs maintenance and technical services, we will only charge the cost.
Packing list
| S/N | name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Power cord | 1 | Piece | |
| 3 | Fuse tube | 1 | Piece | Inside the seat10A |
| 4 | Instruction manual certificate | 1 | Copy | |
| 5 | Warranty card | 1 | Copy |
