Automatic Grain And Feed Hardness Tester Range 0-200N Resolution 0.098N ST120B
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 最高圧力は測定した | 20KG(200N) | 測定される最高の直径 | 20 mm |
|---|---|---|---|
| 測定された最小直径 | 2 mm | 測定精度 | ±0.2%(kg) |
| 解決 | 0.01kg(0.098N) | プリンター | サーマルミニプリンター（オプション） |
| ハイライト | automatic grain hardness tester,feed hardness tester 0-200N,food testing instrument with warranty |
||
製品の説明

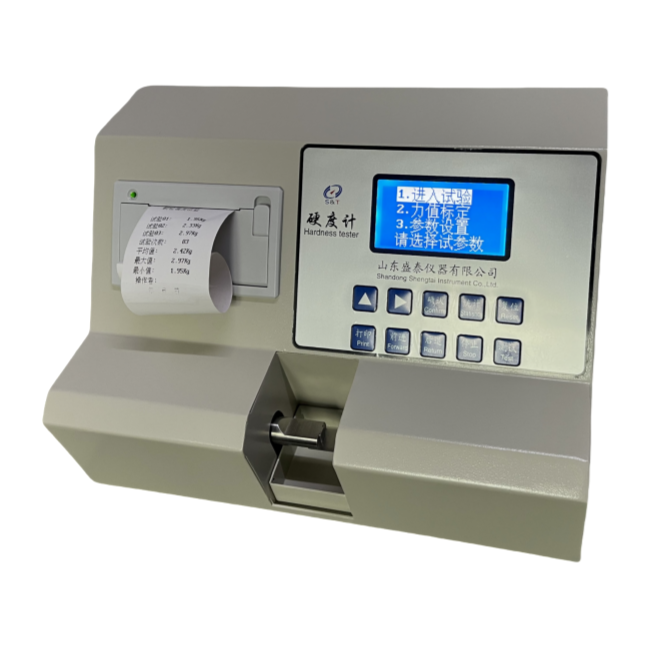

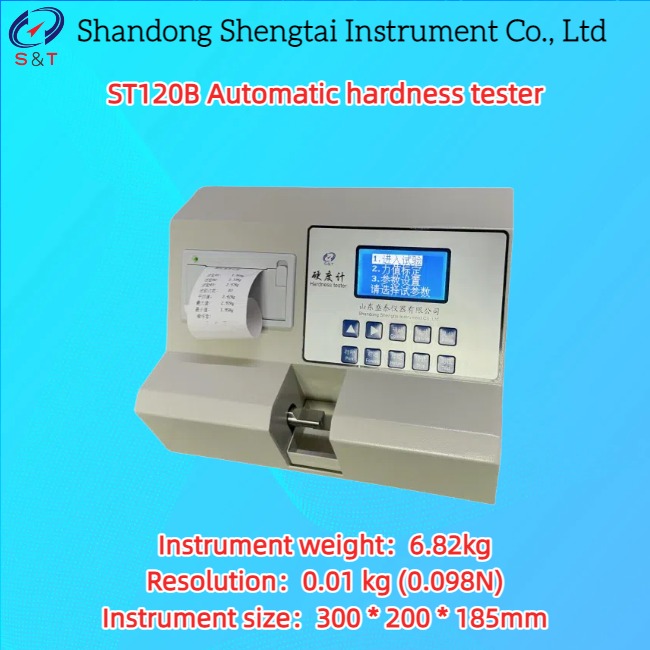

ST120B Automatic hardness tester
ST120B automatic hardness tester is applicable to all major feed, fertilizer, grain and oil, feed companies, agricultural colleges, agricultural products quality inspection and other units to automatically test the hardness of grains and feeds.
Automatic Grain / Pellets Hardness Tester
Automatic Grain and Feed Hardness Tester
Structural features:
The particle hardness tester adopts high precision pressure sensor circuit, which is controlled by single chip microcomputer and blue LCD
Display screen, simple operation, visual display. Motor feed mechanism automatic measurement, uniform force, to avoid each time force produced by error. The instrument can automatically calculate the maximum, minimum, average, standard deviation and other data, test data results can be printed.
Test principle:
When the limit value is reached, the hardness value of grain, fodder and fertilizer particles will be recorded automatically at the moment of automatic breaking. The grain hardness tester is easy to operate and the test data are accurate, which provides a reliable basis for mastering the hardness of grain/fodder.
Technical parameter:
| Maximum pressure measured | 20KG (200N) |
| Maximum diameter measured | 20 mm |
| Minimum diameter measured | 2 mm |
| Measurement accuracy | ± 0.2% (kg) |
| Resolution | 0.01 kg (0.098N) |
| Input power | 15W |
| Power supply | 220 V ± 10% 50Hz |
| Printer | Thermal mini printer (optional) |
| Instrument size | 300 * 200 * 185mm |
| Instrument weight | 6.82kg |
| Package size | 360 * 260 * 260mm |
| Package weight | 7.66kg |
Note: The appearance picture and size, volume and weight of the instrument are for reference only. If the instrument is updated, it may be slightly changed without further notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The instrument materials provided shall be brand new, in line with national quality standards and goods with manufacturer's certificate of conformity;
----The materials and main components provided comply with the technical requirements specified in the technical data;
----The warranty period of the whole equipment is one year (excluding normal wear of wearing parts).
----In case of any instrument quality problem within the warranty period, we shall be responsible for free maintenance. If the equipment fails due to the user's responsibility, we shall be responsible for the repair and reasonable charge.
----The equipment lifetime preferential supply spare parts, complete machine lifetime maintenance repair.
----After expiration of the warranty period, if the user needs maintenance and technical services, we will only charge the cost.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Spare electronics | 1 | Piece | |
| 3 | Power cord | 1 | Strip | |
| 4 | Instruction Manual | 1 | Copy | |
| 5 | Certificate warranty card | 1 | Copy |
