Neutral Acid Washing Fiber Tester Van Soest Method 6 Samples Measure 90min ST116A
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 測定オブジェクト | 粗繊維、ニュートラル繊維、酸性繊維含有量の測定を必要とするさまざまな飼料、穀物、穀物、食品、およびその他の農業およびサイドライン製品 | テスト サンプルの数 | 試験ごとに6 |
|---|---|---|---|
| 測定時間 | 約90分 | サイズ | 540 × 450 × 670mm |
| 力 | 3.3KVA | 電源 | AC220V 50HZ |
| ハイライト | neutral acid washing fiber tester,van soest method fiber analyzer,6 sample food testing instrument |
||
製品の説明

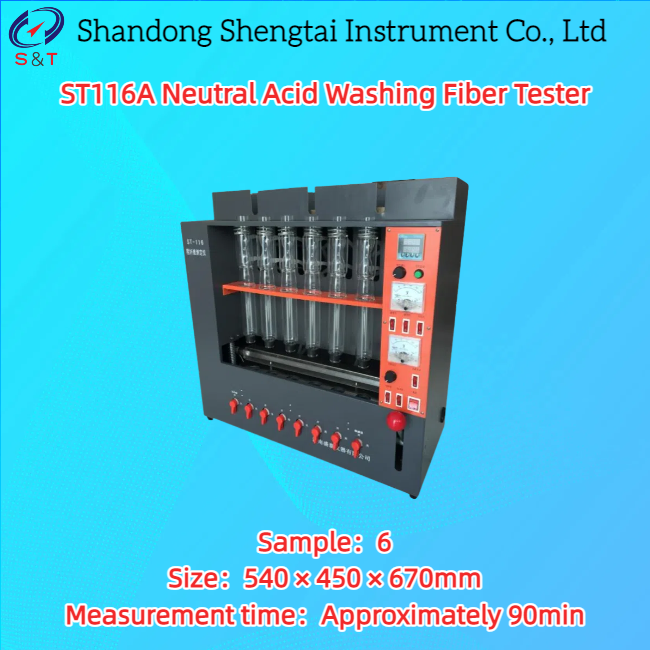

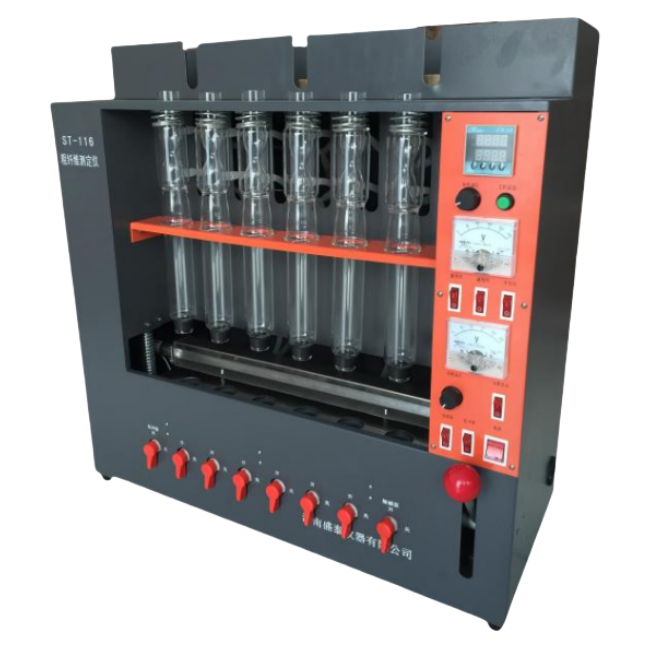

ST116A Neutral Acid Washing Fiber Tester
The ST116A neutral acidic fiber analyzer is an instrument that uses Van Soest's washing fiber analysis method to determine neutral washing fiber (NDF) and acidic washing fiber (ADF), and performs weight determination to obtain the neutral washing fiber and acidic washing fiber content of the sample. Using neutral detergent or acidic detergent, boil the sample under specific conditions, then repeatedly filter it in a specific crucible, rinse it twice with CH3COCH3, move the crucible into a drying oven at 100 degrees Celsius for 3 hours, and then weigh and calculate.
Technical indicators:
| Measurement objects | various feed, grain, cereal, food, and other agricultural and sideline products that require measurement of crude fiber, neutral fiber, and acidic fiber content | ||
| Number of test samples | 6 per test | ||
|
Repetitive error |
Cellulose content below 10% | absolute value error ≤ 0.4 | |
| Cellulose content above 10% | relative error ≤ 4%; | ||
| Measurement time | Approximately 90min | ||
| Power supply | AC220V 50HZ | ||
| Power | 3.3KVA | ||
| Size | 540 × 450 × 670mm | ||
| Weight | 28kg | ||
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Product packing list
| No. | Name | Quantity | Unit | Remark |
| 1 | Host | 1 | Unit | |
| 2 | Fiber crucible | 6 | Piece | |
| 3 | Glass flask | 3 | Piece | |
| 4 | Power cord | 1 | Strip | |
| 5 | Fuse tube | 1 | Piece | 10A inside the insurance seat |
| 6 | Instruction manual | 1 | Copy | |
| 7 | Certificate warranty card | 1 | Copy |
