Grain Oil Inspection Magnetic Metal Tester Blade speed 50r/min 1kg sample GB/T 5509
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 最高の標本の容積 | 1kg | 標本の回復率 | 95%以下 |
|---|---|---|---|
| 刃の速度 | 50r/min | モーター速度 | 50r/min |
| 作業電圧 | AC220V | 全体的な寸法 | 255*275*385 mm |
| ハイライト | grain oil metal tester blade,magnetic metal tester 50r/min,food testing instrument 1kg sample |
||
製品の説明

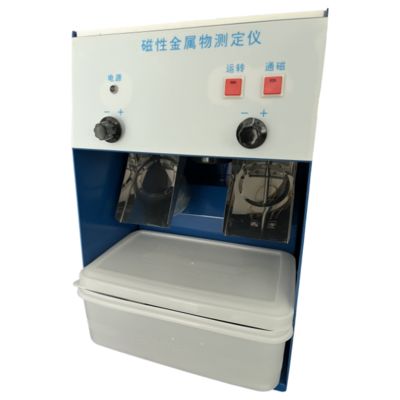

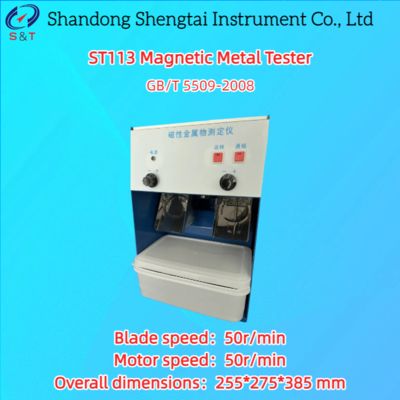

ST113 Magnetic Metal Tester
ST113 Flour Magnetic Metal Tester is a special testing instrument developed and produced according to the national standard of GB/T 5509-2008 "Grain and oil inspection powder magnetic metal matter determination method". It is suitable for quality supervision, flour (and all kinds of grain flour) processing, grain storage and transportation, purchase and sales, scientific research and other departments that need to determine the content of powdered magnetic metals.
Technical specifications:
| Maximum specimen volume | 1kg |
| Specimen recovery rate | not less than 95% |
| Blade speed | 50r/min |
| Motor speed | 50r/min |
| Motor power | 50W |
| Working voltage | AC220V |
| Total weight | 12kg |
| Overall dimensions | 255*275*385 mm |
Technical specifications of magnetic separation plate
| Magnetic induction strength | not less than 120mT |
| Strong magnetic area size | 130mm*130mm |
| Separation plate size | 210*210*6mm |
Note: the appearance picture and size, volume and weight of the instrument are for reference only. If the instrument is updated, there may be a few changes, and no further notice will be given.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Unit | |
| 2 | Magnetic separator plate | 1 | Piece | |
| 3 | Power cord | 1 | Strip | |
| 4 | Fuse tube | 1 | Piece | 10 Ain the safe seat |
| 5 | Instruction manual | 1 | Copy | |
| 6 | Certificate warranty card | 1 | Copy |
