Wheat Flour Double-Head Gluten Meter 10.00±0.01g washing 1-9min GB/T5506.2
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 小麦粉の量を洗う | 10.00±0.01g | ブレンダー速度 | 120r/min |
|---|---|---|---|
| 細かい洗濯ネットの仕様 | GFIW0.08/0.045（プレーンウィーブ）（200メッシュ/インチ） | 寸法 | 280×320×380mm |
| 作業環境 | 温度0-40℃相対湿度<80％ | 作業電圧 | AC220V±10％50Hz |
| ハイライト | wheat flour gluten meter,double-head gluten meter 10.00g,flour test instrument GB/T5506.2 |
||
製品の説明

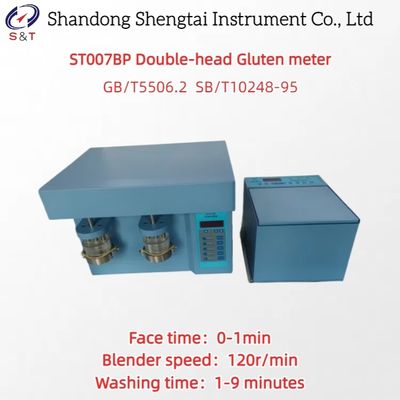

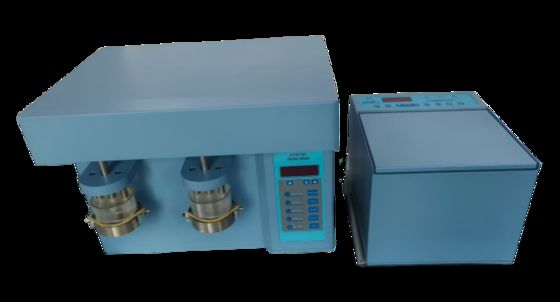

ST007BP Double-head Gluten meter
Remark:model ST007BP=ST007B+ST008+ST009
The ST007BP dual head gluten analyzer is a specialized instrument used to determine the gluten content and quality (gluten index) of flour. The gluten index is used to evaluate the strength of gluten. This instrument is suitable for the determination of wheat flour and whole wheat flour, and is widely used in food and flour processing, grain and oil research institutions, grain storage and other departments. Easy to operate, accurate measurement, and technical indicators comply with the national standard GB/T5506.2-2024 "Wheat and wheat flour gluten content - Part 2: Instrumental determination of wet gluten and gluten index"
ST007B Gluten Washing Machine Features:
● Increased range of washing time adjustment
● Dual pump water supply improves flow stability
● Can be operated with single or double heads
● Redesign the appearance to improve anti-corrosion performance
Main technical parameters
| Washing wheat flour amount | 10.00 ± 0.01g |
| Blender speed | 120r/min |
| Specification of fine washing net | GFIW0.08/0.045 (plain weave) (200 mesh/inch) |
| Coarse washing mesh specification | GFIW0.0630/0315 (plain weave) (26 mesh/inch) |
| Face time | 0-1min (adjustable) |
| Washing time | 1-9 minutes (adjustable) |
| Gluten content | The sum of two measurements should not exceed 1.0% of the average value |
| Working voltage | AC220V ± 10% 50Hz |
| Working environment |
Temp 0-40 ℃ Relative humidity<80% |
| Dimensions | 280 × 320 × 380mm |
| Weight | 18kg |
The ST008 Gluten Index Analyzer (Gluten Centrifuge) is a specialized instrument developed and produced in accordance with GB/T5506.2-2024 "Wheat and Wheat Flour Gluten Content Part 2: Instrumental Determination of Wet Gluten and Gluten Index" and SB/T10248-95 "Wheat Flour Wet Gluten Determination Method - Gluten Index Method" for the dehydration and determination of wet gluten in wheat flour. The whole machine has the characteristics of smooth operation, stable performance, and easy operation, making it an ideal substitute for similar imported instruments.
Technical Specifications
| Working voltage | AC220V |
| Motor power | 25W |
| Motor speed | 6000r/min 3000 r/min |
| Screen box orifice plate | Φ 0.6mm × 1.25mm |
| Working time | 0.5-5 min (adjustable) |
| Weight | 6kg |
ST009 gluten dryer is a specialized instrument for determining the dry gluten content of wheat flour. This instrument is used in conjunction with a gluten washing machine and a gluten index meter (gluten analyzer).
Technical Specifications
| Working power supply | AC220V 50Hz |
| Rated power | 650W |
| Relative humidity | <90% |
| Working temp | 180-200 ℃ |
| Dimensions | 230 × 250 × 110mm |
| Weight | 2.5kg |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
