Lubricating Oil Synthetic Rubber Compatibility Tester Accuracy 0.001g SHT 0429
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 大きな重量測定範囲 | 120g | 測定精度 | 0.001g |
|---|---|---|---|
| 測定時間 | およそ10s | 標準インターフェイス | RS-232 |
| 標準設定 | プリンター | 寸法 | 270 * 270 * 270mm |
| ハイライト | synthetic lubricating oil tester,rubber compatibility oil tester,high accuracy oil testing instrument |
||
製品の説明

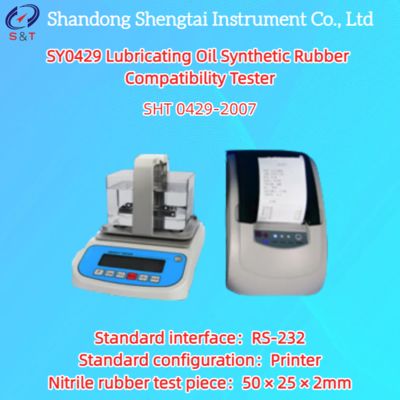

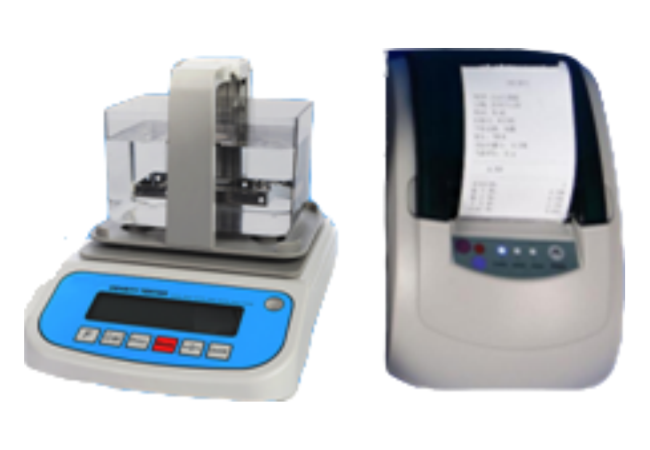

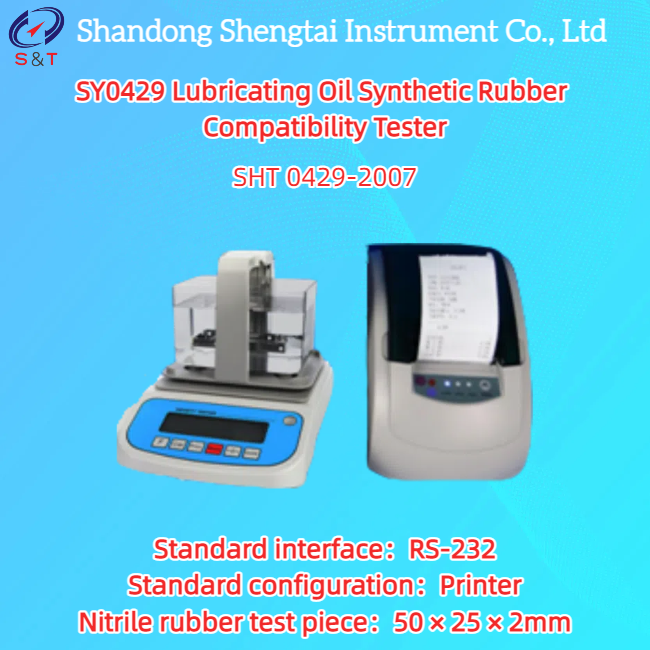

SY0429 Lubricating Oil Synthetic Rubber Compatibility Tester
SY0429 Lubricating grease and synthetic rubber compatibility tester is used to determine the compatibility of lubricating grease and standard synthetic rubber, in accordance with SHT 0429-2007 Lubricating grease and liquid lubricant and rubber compatibility determination method. A standard synthetic rubber test piece with a specified size is placed in a lubricating grease sample at a certain temperature, and after 70 hours of testing, its volume change and hardness change are used to evaluate the compatibility of lubricating grease and standard synthetic rubber.
Functional characteristics and devices:
● Gold plated ceramic capacitive sensor;
● Standard RS232 data output function, easy to connect to computers and printers.
● Fully automatic zero point tracking, buzzer alarm, overload alarm function
● Adopting an integrated transparent measuring sink, the size of the integrated sink is 165 * 115 * 856mm
● Blue backlit LCD display;
● Automatically display the mass of the sample in the air and water
Technical Specifications:
| Large weight measurement range | 120g |
| Measurement accuracy | 0.001g |
| Measurement time | approximately 10s |
| Standard interface | RS-232 |
| Standard configuration | Printer |
| Nitrile rubber test piece | 50 × 25 × 2mm |
| Dimensions | 270 * 270 * 270mm |
| Weight | 7KG |
● Large weight measurement range: 120g
● Measurement accuracy: 0.001g
● Measurement time: approximately 10s
● Standard interface: RS-232
● Standard configuration: Printer
● Nitrile rubber test piece: 50 × 25 × 2mm
● Dimensions: 270 * 270 * 270mm
● Weight: 7KG
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
| Number | Name | Quantity | Unit | Note |
| 1 | A Shore hardness tester | 1 | Unit | Optional |
| 2 | Host | 1 | Unit | Equipped with printer and data cable |
| 3 | Drying oven | 1 | Unit | Optional |
| 4 | Electronic balance | 1 | Unit | Optional |
| 5 | Rubber test piece | 14 | Piece | |
| 6 | Instruction Manual | 1 | Copy | |
| 7 | Certificate of Conformity Warranty Card | 1 | Copy |
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
