液体の石油のテストの器械の化学ルミネセンス方法の跡窒素の決定
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| モデル | SH708 | 電源 | AC220V±22V、50Hz±0.5Hz、1500W |
|---|---|---|---|
| 温度較差 | 室温～1050℃ | 測定範囲 | 0.1～10000mg/L |
| 制御正確さ | ±3℃ | 空気源の条件 | 高純度アルゴンガス：純度99.995%以上 |
| ハイライト | 化学ルミネセンスの石油のテストの器械,器械をテストする石油の炭化水素,液体の跡窒素のテスター |
||
製品の説明

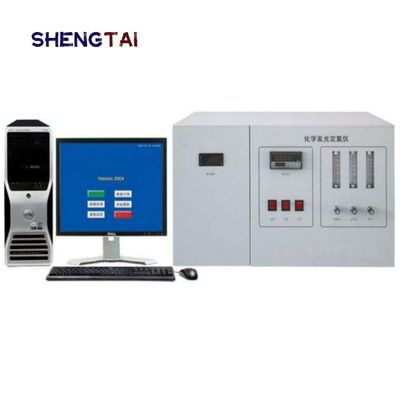

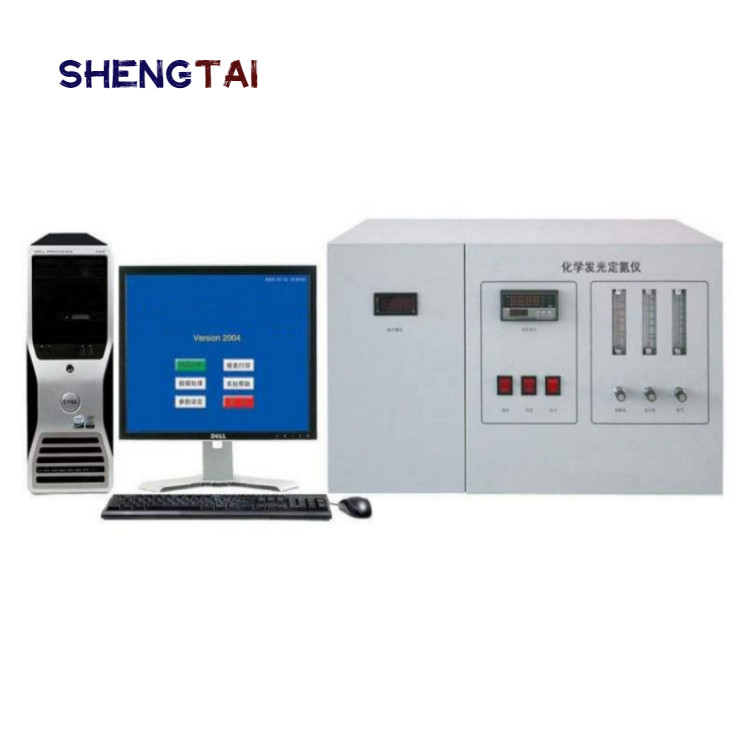

SH708 Chemiluminescence Nitrogen Determination Instrument
The SH708 chemiluminescence nitrogen analyzer uses the chemiluminescence method to determine the total nitrogen content, which improves the ability to resist impurity interference and avoids the cumbersome operation of the titration cell caused by the coulometric method and the resulting unstable factors, greatly improving the sensitivity of the instrument. The key components of the system use imported components, ensuring reliable performance of the entire machine. Applicable to the determination of total nitrogen content in paraffin oil, diesel, gasoline, lubricating oil, fuel oil, liquefied gas, and natural gas, as well as other oil products, chemical raw materials, and finished products, in accordance with the standard SH/T 0657 Determination of Trace Nitrogen in Liquid Petroleum Hydrocarbons (Oxidative Combustion and Chemiluminescence Method, ASTM D5762-2017, SH/T0704, ASTM D4629, GB/T 17674 Determination of Nitrogen Content in Crude Oil by Boat Injection Chemiluminescence Method).
- Chemiluminescence Method Trace Nitrogen Content Analyzer as Per ASTM D4629 and ASTM D5762
- Ultraviolet Fluorescence Sulfur, Nitrogen-in-Oil Analyzer
- Ultraviolet Fluorescence Total Sulfur in Light Hydrocarbons Nitrogen-in-Oil Analyzer ASTM D5453
- ASTM D5453 Ultraviolet Fluorescence Sulfur,Nitrogen-in-Oil Analyzer
- Ultraviolet Fluorescence Total Sulfur in Light Hydrocarbons Nitrogen-in-Oil Analyzer ASTM D5453
| Product model | SH708 |
| Product Name | Chemiluminescence nitrogen analyzer |
| Manufacturer | Shandong Shengtai Instrument Co., Ltd |
| Testing items | Suitable for determining the total nitrogen content of paraffin oil, diesel, gasoline, lubricating oil, fuel oil, liquefied gas, natural gas, as well as other oil products, chemical raw materials, and finished products |
| Compliant with standards | Standard SH/T 0657 Determination of Trace Nitrogen in Liquid Petroleum Hydrocarbons (Oxidative Combustion and Chemiluminescence Method, ASTM D5762-2017, SH/T0704, ASTM D4629, GB/T 17674 Determination of Nitrogen Content in Crude Oil by Boat Injection Chemiluminescence Method) |
| Simple technical features or parameters | The instrument can be turned on and used continuously for 24 hours |
Performance characteristics
1, the use of pneumatic support instrument cover, open the instrument cover internal structure at a glance.
2. The front shape and repeatability of low and small content are better.
3, the instrument can be continuously switched on for 24 hours continuous use of accurate chemiluminescence nitrogen determination instrument.
4. The total nitrogen content in the sample was rapidly measured by chemiluminescence method.
5. High-precision data acquisition and the application of computer technology provide a reliable guarantee for data acquisition, control and processing.
Technical parameters:
| Power supply | AC220V±22V,50Hz±0.5Hz,1500 W | ||||||||||||||||||
| Temperature range | room temperature～1050℃ | ||||||||||||||||||
| Control accuracy | ±3℃ | ||||||||||||||||||
| Air source requirements | High purity argon gas: purity above 99.995% | ||||||||||||||||||
| High purity oxygen: purity above 99.995% | |||||||||||||||||||
| Sample type | Liquids, Solids, and Gases | ||||||||||||||||||
| Determination method | Chemiluminescence method | ||||||||||||||||||
| Sample injection volume | solid sample:1-20mg | ||||||||||||||||||
| Liquid sample:5-20μL | |||||||||||||||||||
| Gas sample:1-5mL | |||||||||||||||||||
| Measuring range | 0.1 ～10000mg/L | ||||||||||||||||||
|
Measurement accuracy |
|
||||||||||||||||||
| Host size: 305 ×460× 440mm Weight: 20kg | |||||||||||||||||||
| Temperature control size: 550 ×460× 440mm Weight: 40kg | |||||||||||||||||||
| Note: Requirements for instrument completeness: host (data acquisition and control system), cracking furnace, automatic sampler (gas and liquid), computer operation software, etc. | |||||||||||||||||||
| Other options: computer, solid state sampler, gas sampler (optional). | |||||||||||||||||||
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Host | set | 1 | |
| 2 | Sampler | set | 1 | |
| 3 | Quartz tube | piece | 1 | Installation and carrying |
| 4 | Standard sample | box | 4 | |
| 5 | Quartz elbow | piece | 1 | |
| 6 | Membrane dryer | piece | 1 | Imported from Japan |
| 7 | Communication cable | piece | 1 | |
| 8 | power cord | piece | 2 | |
| 9 | Power line of cracking furnace | piece | 1 | |
| 10 | Polytetrafluoroethylene pipe | meter | 8 | Φ3 |
| 11 | Silica gel tube | centimeter | 20 | Φ3 |
| 12 | Silica gel tube | centimeter | 20 | Φ5 |
| 13 | Large clip | piece | 1 | |
| 14 | Warranty card certificate | copy | 1 | |
| 15 | Instruction | copy | 1 | |
| 16 | Half moon ceramic ring | piece | 4 | |
| 17 | Sampling probe | piece | 2 | 10ul |
| 18 | Fuse | piece | 2 | 2A |
| 19 | Air pressure cap | piece | 4 | |
| 20 | Thermocouple | piece | 1 | S-type platinum rhodium platinum |
| 21 | Injection pad | piece | 50 | |
| 22 | Computer | set | 1 | Self-prepared |
